Genuine OEM Grasshopper Lawn Mower Parts

Genuine OEM Grasshopper® Mower Parts Diagrams

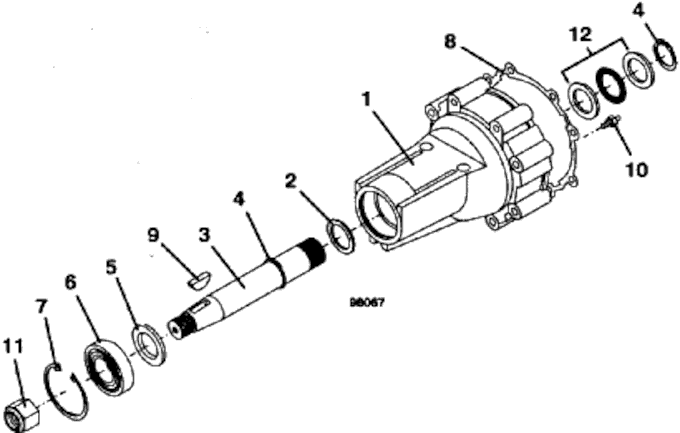

618 • Axle Housing

2000

Axle Housing

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.

Item #

Description

Part Number

1

NOT AVAILABLE

391706

2

Washer

257112

3

Axle Shaft w/Key

603097

4

External Retainer

263545

5

Seal

125383

6

Ball Bearing

120086

7

Internal Retainer

263212

8

Axle Housing Gasket

420344

9

Woodruff Key

281836

10

NOT AVAILABLE

103728

11

Nylon Insert Nut

253501

12

Bearing & Thrust Washer Assembly

257115
