Genuine OEM Grasshopper Lawn Mower Parts

Genuine OEM Grasshopper® Mower Parts Diagrams

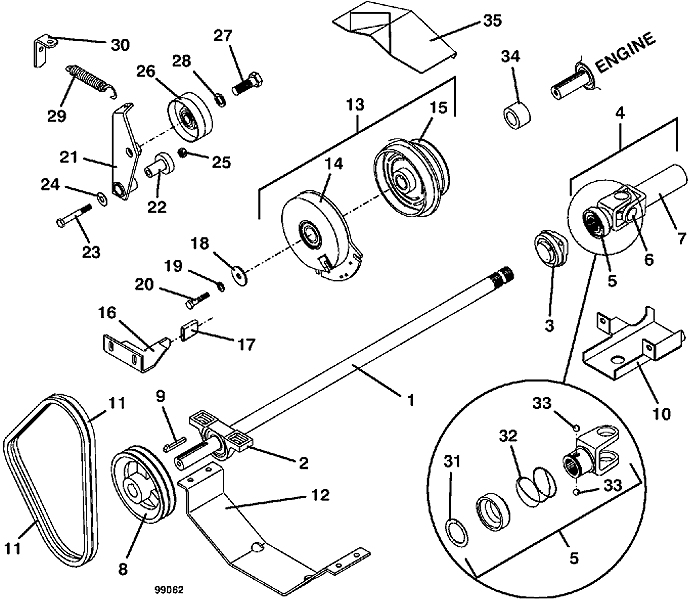

618 • PTO Shaft & Clutch Assembly

2000

PTO Shaft and Clutch Assembly

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.

Item #

Description

Part Number

1

35.5 Power Shaft

393758

2

Pillowblock SC Bearing

122044

3

2 Bolt Flange Bearing

121425

4

UN Half Sleeve

398914

5

Splined QD Yoke

401019

6

Cross & Bearing

121010

7

Yoke with Sleeve

401017

8

Sheave

415650

9

Square Gib Key

281588

10

600S PTO Shield

729208

11

Belt

381914

12

600 Sheave Guard

725274

13

1.0 Clutch & Bushing Assembly

606239

14

Field Assembly with Brake

388873

15

Armature & Rotor Assembly

388864

16

600 Anti-Rotation Bracket

725060

17

Clutch Cover Bracket

422088

18

Washer

883801

19

Lock Washer

257412

20

GR 8 Hex Bolt

243344

21

600 PTO Idler Arm

824504

22

Pedestal Bearing

121650

23

Hex Bolt

243365

24

Washer

257040

25

Nylon Insert Nut

253460

26

Idler

393175

27

Hex Bolt

243805

28

Lock Washer

257452

29

Extension Spring with Swivel

283819

30

Idler Spring Bracket

732539

31

External Retainer

263660

32

Compression Spring

283525

33

Steel Ball

300014

34

Spacer

902544

35

618 Clutch Shield

644119

Return to 618 Index Return to Top of Page
