Genuine OEM Grasshopper Lawn Mower Parts

Genuine OEM Grasshopper® Mower Parts Diagrams

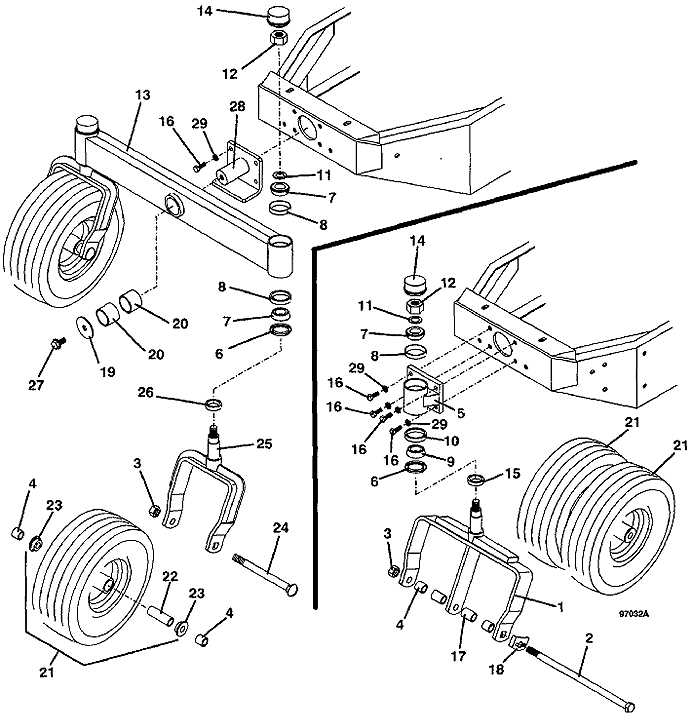

618 • Tail Wheel Options

2000

Tail Wheel Options

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.

Item #

Description

Part Number

1

Dual Fork & Lock Nut Assembly

604366

2

Hex Bolt

243922

3

Lock Nut

253970

4

Axle Spacer

902425

5

Dual Fork Pivot Housing Assembly

604595

6

Seal

125855

7

Taper Bearing

122522

8

Bearing Cup

123522

9

Taper Bearing

122523

10

Bearing Cup

123521

11

14 Ga Bushing Washer

257091

12

Lock Nut

253992

13

Dual Wheel Beam

824510

14

Dust Cap

481432

15

Spacer

830420

16

Hex Bolt

243330

17

Dual Wide Tire Spacer

902427

18

Fork Bolt Lock

723008

19

Washer

257061

20

Reamed Oilite Bearing

833275

21

13 x 6.5 x 6 Wheel & Tire with Bearing & Spacer

483865

22

Rear Wheel Bearing Spacer

902475

23

Ball Bearing

120050

24

Carriage Bolt

247725

25

Fork & Lock Nut Assembly

604365

26

Spacer

282615

27

Whiz Bolt

253243

28

Rear Axle Pivot Assembly

604597

29

Lock Washer

257412
