Genuine OEM Grasshopper Lawn Mower Parts

Genuine OEM Grasshopper® Mower Parts Diagrams

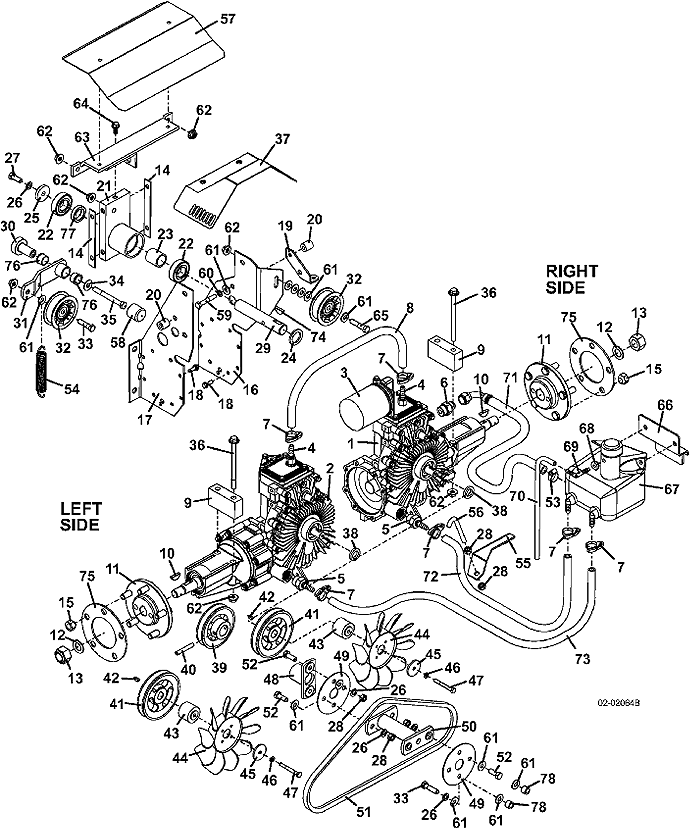

618 • Drive Assembly

2003

Drive Linkage Assembly

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.

Item #

Description

Part Number

1

right Charge Port Transaxle

391215

2

left Non-Charge Transaxle with PP

391214

3

Transaxle Oil Filter

100850

4

O-Ring Boss Fitting

363864

5

O-Ring Boss Fitting

363866

6

Steel O-Ring Flare Fitting

363834

7

Plastic Snap Hose Clamp

280273

8

Hydraulic Hose

821785

9

Transmission Spacer

901740

10

Woodruff Key

281836

11

Tapered 5-Bolt Hub Assembly

603429

-

Wheel Stud Bolt

248570

12

Washer

257102

13

Nylon Insert Nut

253501

14

Spindle Plate Shim

900130

15

Lug Nut

254472

16

right Transaxle Mount Plate

729523

17

left Transaxle Mount Plate

724280

18

Hex Flange Whiz Bolt

253174

19

right Neutral Spring Bracket

729037

20

Drive Mount Plate Spacer

902307

21

600 Drive Spindle Housing

824538

22

2 Reg Seal 25mm Ball Bearing

110081

23

Drive Bearing Spacer

903650

24

Washer

257107

25

Washer

883801

26

Lock Washer

257412

27

Hex Bolt

243331

28

Nut

254450

29

600 Trans Drive Shaft

882113

30

Pedestal Bearing

121650

31

600 Drive Idler Arm

824505

32

Idler

393165

33

Hex Bolt

243340

34

Washer

257040

35

Hex Bolt

243375

36

Flange Bolt

253215

37

618C Intake Shield with Decal

693777

38

Washer

775002

39

Sheave

414444

40

Roll Pin

261061

41

Sheave

415540

42

Woodruff Key

281829

43

Fan Spacer

423724

44

7" counter-clockwise Nylon Fan

320856

45

Flat Washer

774023

46

Lock Washer

257392

47

Hex Bolt

243045

48

Flex Coupling Hub

824550

49

Flex Coupling Disc

821530

50

Coupling Connector

644118

51

Belt

382627

52

Hex Bolt

243330

53

Screw-Type Hose Clamp

280274

54

Extension Spring

283842

55

right Idler Spring Bracket

724089

56

Idler Adjustment J Bolt

730391

57

600 Drive Spindle Shield with DPR

693767

58

Vinyl Cap

422098

59

Hex Bolt

243225

60

Lock Washer

257402

61

Washer

257030

62

Whiz Nut

253043

63

600 Steering Shock Mount

643849

64

Hex Flange Whiz Bolt

253192

65

Whiz Bolt

243345

66

618 Reservoir Mount

754030

67

Oil Reservoir with Grommet Fittings

822331

-

Reservoir Cap with Gasket

421990

68

Grommet

424209

69

Barbed 90 degree Fitting

363835

70

Clear Vent Hose

821724

71

Hose Assembly

424321

72

Hydraulic Hose

821783

73

Hydraulic Hose

821788

74

Woodruff Key

281845

75

10 GA Wheel Spacer

901311

76

Oilite Bearing

121756

77

Spacer

282615

78

Spacer

902280

Return to 618 Index Return to Top of Page
