Genuine OEM Grasshopper® Mower Parts Diagrams
623t • Tail Wheel Options 1
2014

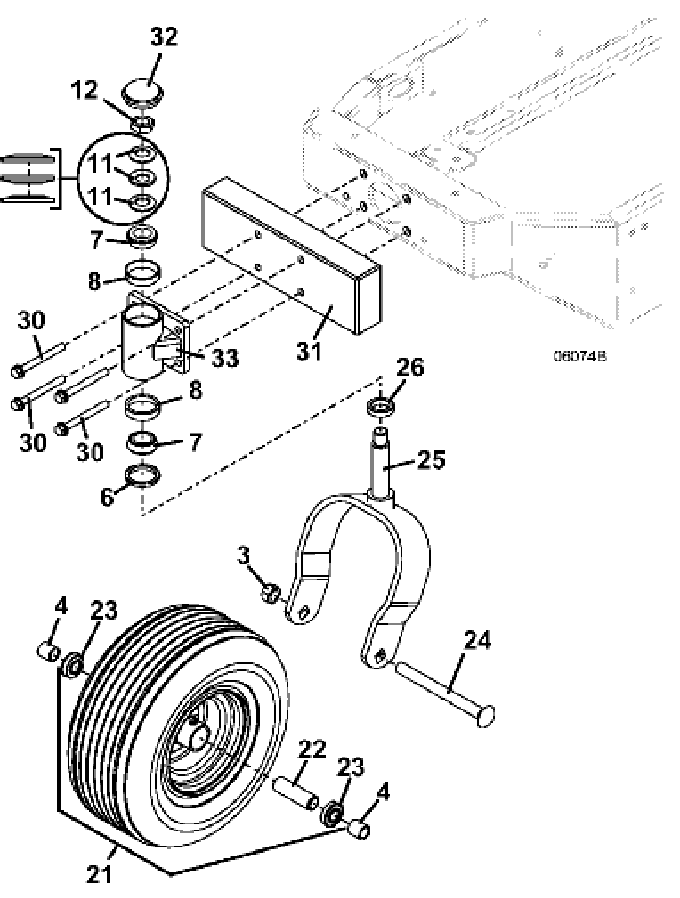

Click On a Part Number Below for Details
NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.
Item # |
Description |
Part Number |
3 |
Lock Nut |
253970 |
4 |
Axle Spacer |
902425 |
6 |
Seal |
125855 |
7 |
Taper Bearing |
122522 |
8 |
Bearing Cup |
123522 |
11 |
Spring Washer |
257320 |
12 |
Nylon-Top Jam Lock Nut |
254505 |
21 |
13 x 6.50 x 6 Wheel & Tire w/Bearing & Spacer |
483865 |
- |
13 x 6.50 x 6 Ribbed Tire |
482355 |
- |
6 x 4.5 Wheel without Bearings - tan |
483306 |
22 |
Rear Wheel Bearing Spacer |
902475 |
23 |
Ball Bearing |
120050 |
24 |
Carriage Bolt |
247726 |
25 |
Tail Wheel Fork Tapered Bearing |
645221 |
26 |
Spacer |
282615 |
30 |
Whiz Bolt |
253212 |
31 |
600 Series Counterweight |
783810 |
32 |
Domed Dust Cap |
481434 |
33 |
RR Fork Pivot Housing Assembly |
604596 |
