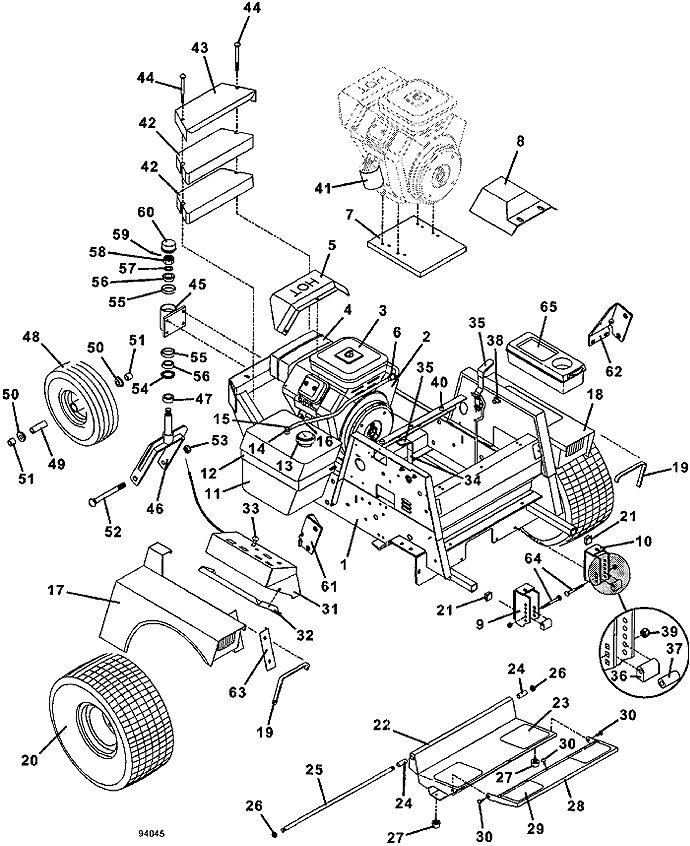

Item # |
Description |
Part Number |
1 |
718/718K Tractor Frame |
643378 |
2 |
18hp Briggs & Stratton Engine |
100143 |
3 |
Briggs Air Filter |
100920 |
- |
Briggs & Stratton Air Filter Pre-Cleaner |
100921 |
4 |
Muffler & Support Assembly |
603592 |
- |
Vanguard Heat Shield |
729196 |
5 |
600 Muffler Shield |
722266 |
6 |
Briggs In-Line Fuel Filter |
366560 |
7 |
700 Spacer |
901701 |
8 |
718 Intake Shield with Decal |
693780 |
9 |
Right 700/900 QD Deck Mount |
643092 |
10 |
Left 700/900 QD Deck Mount |
643093 |
11 |
Fuel Tank Assembly with Draw Tube |
603813 |
12 |
Fuel Tank Mounting Bracket |
643144 |
13 |
Cap with Fuel Level |
141125 |
14 |
Fuel Draw Tube |
101819 |
15 |
Spring Hose Clamp |
280260 |
16 |
Hose |
821749 |
17 |
700S Right Fender with Decal |
693204 |
- |
718 Right Trim Decal |
163206 |
18 |
700S Left Fender with Decal |
693205 |
- |
718 Left Trim Decal |
163207 |
19 |
700/900 Fender Edge Trim |
822635 |
20 |
20 x 10 x 8 Tan Wheel & Turf Tire |
483921 |
- |
20 x 10 x 8 Turf Tire |
482471 |
- |
21 x 11 x 8 Bar Tread Tire |
482478 |
- |
5-Bolt 8 x 6 Wheel |
483410 |
- |
5-Bolt 8 x 9.125 Wheel |
483415 |
- |
21 x 11 x 8 Right Wheel & Bar Tread Tire |
483930 |
- |
21 x 11 x 8 Left Wheel & Bar Tread Tire |
483931 |
21 |
1 Inch ID Square Plastic Plug |
422065 |
22 |
Foot Platform Assembly |
603343 |
23 |
Foot Rest Tread |
420905 |
24 |
Nylon Bearing |
422615 |
25 |
700 Foot Platform Pivot Rod |
780673 |
26 |
Nut with Nylon Insert |
253470 |
27 |
Rubber Bumper |
424052 |
28 |
700 Foot Platform Extension |
603301 |
29 |
Foot Rest Extension Tread |
420904 |
30 |
Carriage Bolt |
247130 |
31 |
718/718K Console |
643201 |
32 |
Side Console Filler Panel |
721136 |
33 |
Mechanical Choke |
142228 |
34 |
718 Throttle Assembly |
603851 |
- |
Control Cable Assembly |
323642 |
- |
Throttle Lever Stop |
722009 |
35 |
Handle Grip |
422150 |
36 |
Deck Mount Bushing |
282575 |
37 |
Floating Deck Mount Bushing |
282576 |
38 |
Spacer |
902280 |
- |
Hex Bolt |
243330 |
- |
Washer |
257040 |
39 |
Nut with Nylon Insert |
253460 |
40 |
Rubber Bumper |
424015 |
41 |
Briggs Oil Filter |
100803 |
42 |
34 lb Counterweight |
323933 |
43 |
34 lb Weight Cover Plate |
729514 |
44 |
Carriage Bolt |
247325 |
45 |
Right rear Fork Pivot Housing Assembly |
604596 |
46 |
Rear Fork & Lock Nut Assembly |
604364 |
47 |
Spacer |
282615 |
48 |
13 x 5 x 6 Wheel & Tire with Bearing & Spacer |
483861 |
- |
13 x 5.00 x 6 Tubeless Ribbed Tire |
482350 |
- |
6 x 3.25 Tan Wheel with Bearing & Spacer |
483301 |
49 |
Rear Wheel Bearing Spacer |
902475 |
50 |
Ball Bearing |
120050 |
51 |
Axle Spacer |
902425 |
52 |
Carriage Bolt |
247725 |
53 |
Lock Nut |
253970 |
54 |
Seal |
125855 |
55 |
Bearing Cup |
123522 |
56 |
Tapered Bearing |
122522 |
57 |
14 GA Bushing Washer |
257091 |
58 |
Nut |
254502 |
59 |
Cotter Pin |
260668 |
60 |
Dust Cap |
481432 |
61 |
Right Gusset for ROPS |
726131 |
62 |
Left Gusset for ROPS |
726132 |
63 |
Right Fender Cover Panel |
722062 |
64 |
Special Carriage Bolt |
247280 |
65 |
Tool Box |
422040 |
66 |
718V Decal Set |
603267 |
