Genuine OEM Grasshopper Lawn Mower Parts

Genuine OEM Grasshopper® Mower Parts Diagrams

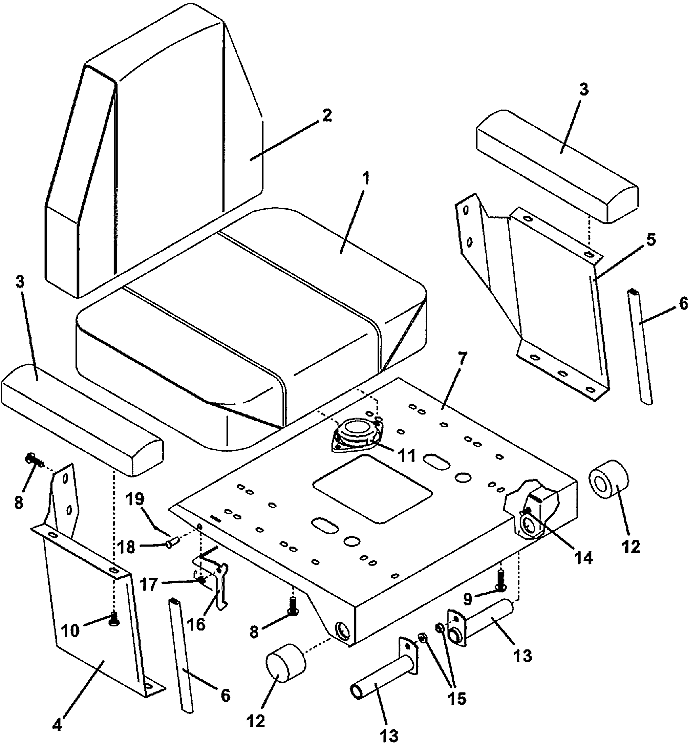

718 • Seat Assembly

1996

Seat Assembly

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.

Item #

Description

Part Number

1

Formed Seat Cushion

321515

2

Back Cushion

321511

3

Arm Rest

321501

4

right Side Member

724310

5

left Side Member

724311

6

Seat Edge Trim

822630

7

Seat ISO w/a

643912

8

Hex Flange Whiz Bolt

253193

9

Hex Whiz Bolt

253194

10

Hex Flange Whiz Bolt

253191

11

Seat Switch

183870

12

Seat Isolator

424095

13

Seat Hinge Pin

644618

14

Hex Flange Whiz Bolt

253192

15

Whiz Nut

253035

16

Seat Latch

724112

17

Torsion Spring

284408

18

Clevis Pin

261284

19

Cotter Pin

260648

20

700 AC Seat Assembly

604735

return to 718 index return to top of page
