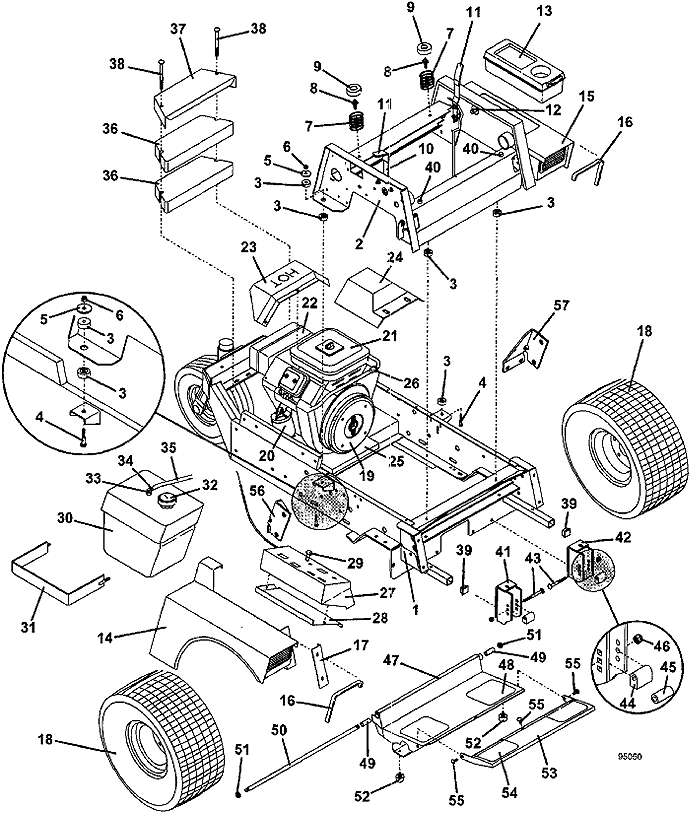

718 • Tractor Assembly
1997
Click On a Part Number Below for Details
NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.
Item # |
Description |
Part Number |
1 |
718/718K Lower Tractor Frame |
644229 |
2 |
96 Air Cooled Upper Frame |
643868 |
3 |
Step Bushing |
257037 |
4 |
Hex Bolt |
243220 |
5 |
Washer |
774020 |
6 |
Nylon Insert Nut |
253450 |
7 |
Compression Spring |
283516 |
8 |
Whiz Flange Bolt |
253203 |
9 |
Seat Spring Cap |
422127 |
10 |
718 Throttle Assembly |
603851 |
- |
Control Cable Assembly |
323641 |
- |
Throttle Lever Stop |
722009 |
11 |
Handle Grip |
422150 |
12 |
Spacer |
902280 |
- |
Hex Bolt |
243330 |
- |
Washer |
257040 |
13 |
Tool Box |
422040 |
14 |
700/900 Right Fender with Safety Decal |
693210 |
- |
718 Right Trim Decal |
163206 |
15 |
700/900 Left Fender with Safety Decal |
693211 |
- |
718 Left Trim Decal |
163207 |
16 |
700/900 Fender Edge Trim |
822635 |
17 |
Right Fender Cover Panel |
722062 |
18 |
20 x 10 x 8 Tan Wheel & Turf Tire |
483921 |
- |
20 x 10 x 8 Turf Tire |
482471 |
- |
21 x 11 x 8 Bar Tread Tire |
482478 |
- |
8 x 6 5-Bolt Wheel |
483410 |
- |
8 x 9.125 5-Bolt Wheel |
483415 |
- |
21 x 11 x 8 Right Wheel & Bar Tread Tire |
483930 |
- |
21 x 11 x 8 Left Wheel & Bar Tread Tire |
483931 |
19 |
18hp Briggs & Stratton Engine |
100143 |
20 |
Briggs Oil Filter |
100803 |
21 |
Briggs Air Filter |
100920 |
- |
Briggs & Stratton Air Filter Pre-Cleaner |
100921 |
22 |
Muffler & Support Assembly |
603592 |
- |
Vanguard Heat Shield |
729196 |
23 |
600 Muffler Shield |
722266 |
24 |
718 Intake Shield with Decal |
693780 |
25 |
700 Spacer |
901701 |
26 |
Briggs In-Line Fuel Filter |
366560 |
27 |
96 Air Cooled Console with Decal |
693100 |
28 |
96 Console Fill Panel |
721152 |
29 |
Mechanical Choke |
142228 |
30 |
Fuel Tank Assembly with Draw Tube |
603813 |
31 |
Fuel Tank Mounting Bracket |
643144 |
32 |
Fuel Cap with Level Indicator |
141125 |
33 |
Fuel Draw Tube |
101819 |
34 |
Spring Hose Clamp |
280260 |
35 |
Hose |
821749 |
36 |
34 lb Counterweight |
323933 |
37 |
34 lb Weight Cover |
729514 |
38 |
Carriage Bolt |
247325 |
39 |
1" ID Square Plastic Plug |
422065 |
40 |
Rubber Bumper |
424015 |
41 |
Right 700/900 QD Deck Mount |
643092 |
42 |
Left 700/900 QD Deck Mount |
643093 |
43 |
Special Carriage Bolt |
247280 |
44 |
Deck Mount Bushing |
282575 |
45 |
Floating Deck Mount Bushing |
282576 |
46 |
Nut with Nylon Insert |
253460 |
47 |
700/900 Adjustable Foot Platform Assembly |
604346 |
48 |
Foot Rest Tread |
420905 |
49 |
Nylon Bearing |
422615 |
50 |
700 Foot Platform Pivot Rod |
780673 |
51 |
Nut with Nylon Insert |
253470 |
52 |
Rubber Bumper |
424052 |
53 |
Model 700 Foot Platform Extension |
603301 |
54 |
Foot Rest Extension Tread |
420904 |
55 |
Carriage Bolt |
247130 |
56 |
Right ROPS Gusset |
726131 |
57 |
Left ROPS Gusset |
726132 |
58 |
718V Decal Set |
603267 |
