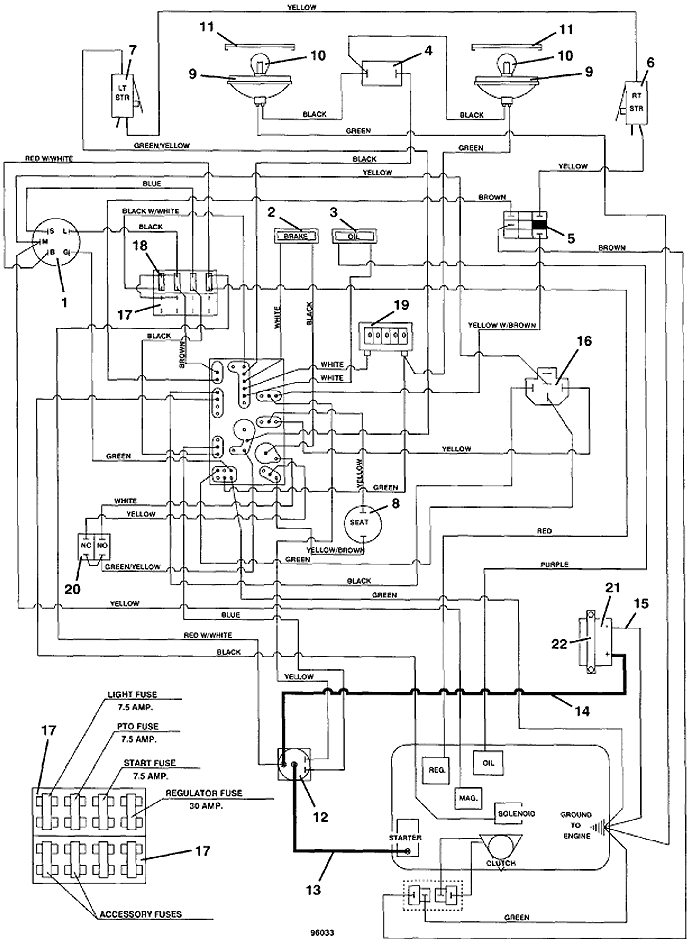

Genuine OEM Grasshopper® Mower Parts Diagrams
718 • Wiring & Lights
1999
Click On a Part Number Below for Details
NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.
Item # |
Description |
Part Number |
1 |
Briggs & Stratton/Kohler Key Switch |
183806 |
- |
Ignition Key with Cover |
101101 |
- |
Nut |
254498 |
- |
Plastic Panel |
422078 |
2 |
Brake Indicator Light |
182326 |
3 |
Oil Indicator Light |
182327 |
4 |
Rocker Switch |
184179 |
5 |
Push/Pull Switch |
183925 |
6 |
Lever Switch |
183860 |
- |
Right Steering Switch Mount |
720160 |
7 |
Lever Switch |
183860 |
- |
Left Steering Switch Mount |
720161 |
8 |
Seat Switch |
183870 |
9 |
Flood Worklamp |
182253 |
10 |
Worklamp Light Bulb |
182005 |
11 |
Snap Mount Worklamp Bezel |
182251 |
12 |
4 Post Solenoid Relay Switch |
184251 |
13 |
11 inch Red Battery Cable |
180309 |
14 |
30 inch Red Battery Cable |
180330 |
- |
Starter Terminal Boot |
425219 |
15 |
20 inch Black Battery Cable |
180280 |
16 |
12V DC Relay with Mount |
184271 |
- |
Type 1 6mm Push-On |
184570 |
- |
.250 Fast-On Terminal |
184581 |
- |
5-Way Female Connector |
184926 |
17 |
Fuse Block |
181722 |
- |
1 Wire Fuse Clip |
184458 |
- |
2 Wire Fuse Clip |
184460 |
- |
Double Fuse Clip |
184472 |
18 |
ATC 30a Auto Fuse |
181470 |
- |
ATC 7.50a Auto Fuse |
181460 |
19 |
Snap-In Hour Meter |
141551 |
20 |
Brake Interlock Switch |
183894 |
21 |
12v Wet Battery |
180125 |
22 |
Battery Hold Down |
822410 |
23 |
718 97 Wiring Assembly |
604965 |
24 |
Console Decal for Air Cooled |
161130 |
