Genuine OEM Grasshopper Lawn Mower Parts

Genuine OEM Grasshopper® Mower Parts Diagrams

718 • Reservoir & Hose Assembly

2000

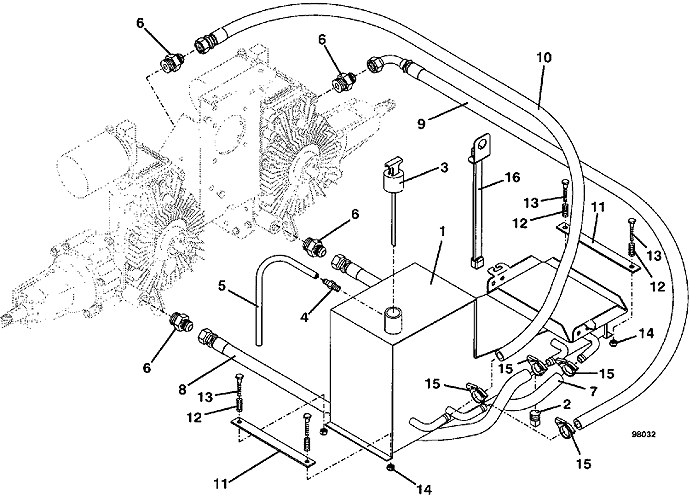

Reservoir and Hose Assembly

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.

Item #

Description

Part Number

1

Reservoir Assembly with Battery Box & Dipstick

603710

2

3/8 inch Metal Pipe Plug

365515

3

Oil Reservoir Plastic Dipstick

100729

4

Barbed Straight Fitting

363826

5

Clear Vent Hose

821724

6

Steel O-Ring Flare Fitting

363834

7

Hose Assembly

424336

8

Hose Assembly

424341

9

Hose Assembly

424347

10

Hose Assembly

424359

11

Reservoir Hold-Down Bracket

774084

12

Compression Spring

283252

13

Hex Bolt

243035

14

Nut with Nylon Insert

253440

15

Plastic Snap Hose Clamp

280278

16

Battery Hold Down Strap

604785
