Genuine OEM Grasshopper Lawn Mower Parts

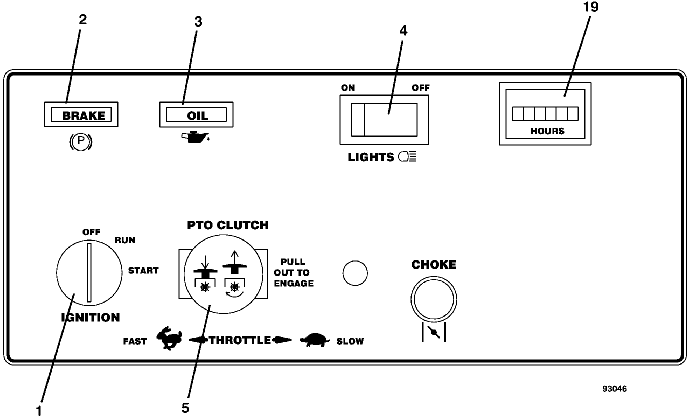

Genuine OEM Grasshopper® Mower Parts Diagrams

718 • Console

2001

Console

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.

Item #

Description

Part Number

1

Briggs & Stratton / Kohler Key Switch

183806

-

Ignition Key with Cover

101101

-

Nut

254498

-

Plastic Panel

422078

2

Brake Indicator Light

182326

3

Oil Indicator Light

182327

4

Rocker Switch

184179

5

Push / Pull Switch

183925

19

Snap-In Hour Meter

141151

20

Console Decal for Air-Cooled Tractor

161130
