Genuine OEM Grasshopper® Mower Parts Diagrams

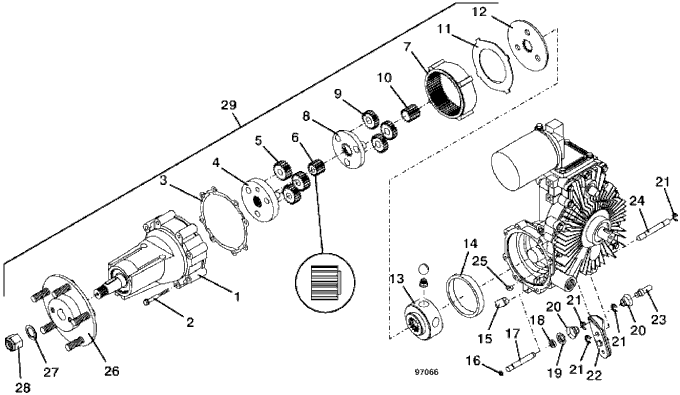

718 • Final Drive Assembly
2001
Click On a Part Number Below for Details
NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.
Item # |
Description |
Part Number |
1 |
NOT AVAILABLE |
391706 |
- |
Axle Housing Assembly |
391704 |
2 |
Machine Screw |
250459 |
3 |
Axle Housing Gasket |
420344 |
4 |
NOT AVAILABLE |
392806 |
- |
Secondary Planetary Assembly - NOT AVAILABLE |
392840 |
5 |
Secondary Planetary Gear |
392834 |
- |
Secondary Planetary PM Gear - OBSOLETE |
392837 |
6 |
Secondary Sun-Finished Steel Gear |
392831 |
- |
Secondary Sun-Finished PM Gear |
392832 |
7 |
Double Ring Gear |
392838 |
8 |
NOT AVAILABLE |
392805 |
9 |
Primary Planetary Gear |
392823 |
- |
Primary Planetary Gear |
392824 |
10 |
Primary Sun-Finished Steel Gear w/out Pin |
392821 |
11 |
Back-Up Plate - NOT AVAILABLE |
103731 |
12 |
Composite Reaction Plate |
103723 |
13 |
Rotor Motor |
103775 |
14 |
Cup Bearing |
123758 |
15 |
NOT AVAILABLE |
103729 |
16 |
Quad Seal |
125160 |
17 |
NOT AVAILABLE |
000000 |
18 |
NOT AVAILABLE |
000000 |
19 |
Base Spring |
103726 |
20 |
Conical Spring |
103692 |
21 |
External Retainer |
263489 |
22 |
NOT AVAILABLE |
103725 |
23 |
NOT AVAILABLE |
000000 |
24 |
Brake Pivot Rod |
103724 |
25 |
Magnet |
102501 |
- |
Tie |
423147 |
26 |
Tapered 5 Bolt Hub Assembly |
603429 |
- |
Stud Wheel Bolt |
248570 |
- |
4 Bolt Hub Assembly |
603423 |
27 |
14 Gauge Bushing Washer |
257091 |
28 |
Nylon Insert Nut |
253501 |
29 |
Final Drive Assembly - 700 Series - NOT AVAILABLE |
603339 |
- |
Final Drive Assembly - 600 Series - NOT AVAILABLE |
603335 |
Return to 718 Index
