Genuine OEM Grasshopper Lawn Mower Parts

Genuine OEM Grasshopper® Mower Parts Diagrams

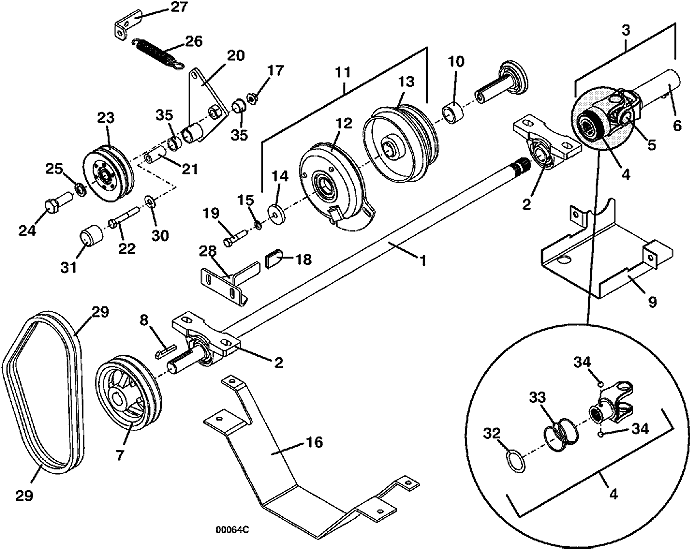

718 • PTO Shaft & Clutch Assembly

2003

PTO Shaft and Clutch Assembly

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.

Item #

Description

Part Number

1

37 Power Shaft

393759

2

Pillowblock SC Bearing

122044

3

UN Half Sleeve

398914

4

Quick Disconnect Splined Yoke

401019

5

Cross & Bearing

121010

6

Yoke with Sleeve

401017

7

Sheave

415650

8

Square Gib Key

281588

9

PTO Shaft Shield

729287

10

Spacer

902543

11

1.0 Clutch & Bushing Assembly

606239

12

Field Assembly with Brake

388873

13

Armature & Rotor Assembly

388864

14

Washer

883801

15

Lock Washer

257412

16

700 Sheave Guard

725256

17

Whiz Nut

253043

18

Clutch Bracket Cover

422088

19

GR 8 Hex Bolt

243344

20

700 KC Idler Arm

824177

21

Pivot Shaft Bearing

881105

22

Hex Bolt

243355

23

Sheave

415610

24

Hex Bolt

243805

25

Lock Washer

257452

26

Extension Spring with Swivel

283820

27

928 Idler Spring Bracket

732524

28

700 AC Anti-Rotation Bracket

725119

29

Belt

381914

30

Washer

257040

31

Vinyl Cap

422098

32

External Retainer

263660

33

Compression Spring

283525

34

Steel Ball

300014

35

Oilite Bearing

121756
