Genuine OEM Grasshopper Lawn Mower Parts

Genuine OEM Grasshopper® Mower Parts Diagrams

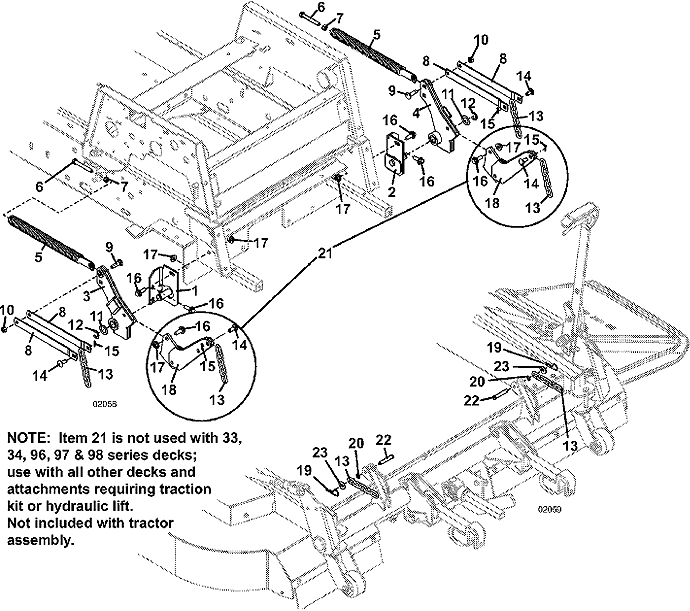

718 • Traction Kit

2003

Traction Kit

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.

Item #

Description

Part Number

1

right Lift Pivot

644545

2

left Lift Pivot

644546

3

right Rocker without Extension

603701

-

Oilite Bearing

121766

4

left Rocker without Extension

603702

-

Oilite Bearing

121766

5

Traction Kit Spring Assembly

605760

6

Hex Bolt

243395

7

Nut

254450

8

Lift Strap for 600 with SL Deck

732410

9

Carriage Bolt

247254

10

Lock Nut

253890

11

18 GA Bushing Washer

257092

12

External Retainer

263529

13

Lift Chain with 6 Links

820320

14

Clevis Pin

261339

15

Cotter Pin

260648

16

Flange Whiz Bolt

253203

17

Whiz Nut

253043

18

Rocker Arm Extension

644706

19

Hair Pin

260523

20

Push On Retainer

262950

21

700/900 Rocker Extension Kit

604708

22

Clevis Pin

261362

23

Washer

257040
