Genuine OEM Grasshopper Lawn Mower Parts

Genuine OEM Grasshopper® Mower Parts Diagrams

718D • Drive Linkage

1988

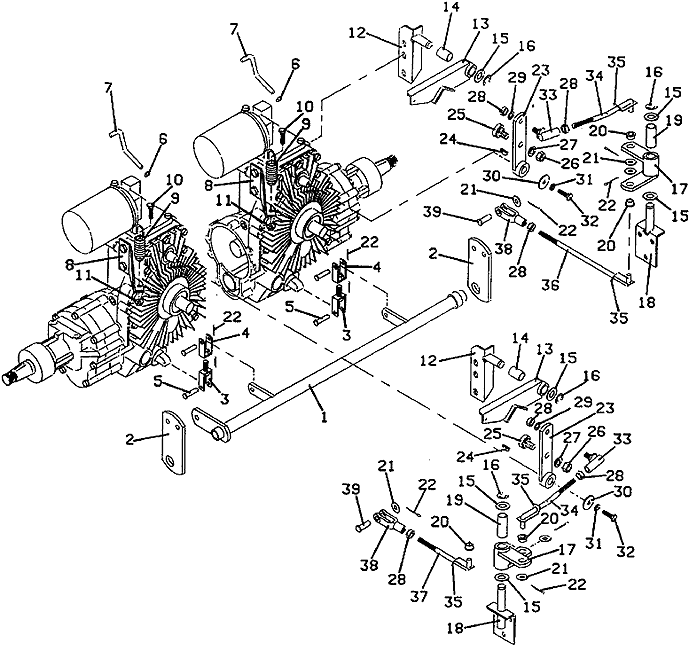

Drive Linkage Assembly

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.

Item #

Description

Part Number

1

Brake Pivot Tube

643719

2

Brake Pivot Rod Mount

783179

3

Brake Linkage Yoke Assembly

603980

4

Brake Linkage Yoke Assembly

603980

5

Clevis Pin

261236

6

Push-On Retainer

262934

7

Dump Valve Lever

730088

8

Neutral Return Spring Bracket

729072

9

Extension Spring

283823

10

Hex Bolt

243030

11

Whiz Nut

253025

12

Neutral Return Pivot Mount

643603

13

Neutral Return Arm with Bearing

603084

14

Nylon Bearing

422560

15

Washer

257063

16

External Retainer

263500

17

Linkage Pivot with Bearing

603565

18

Control Linkage Pivot

643627

19

Nylon Bearing

422585

20

Nylon Bearing

422540

21

Washer

257030

22

Cotter Pin

260628

23

700 Control Arm

643057

24

Woodruff Key

281823

25

Eccentric Roller Assembly

603726

26

Nut

254450

27

Lock Washer

257412

28

Nut

254441

29

Lock Washer

257402

30

Flat Washer

774012

31

Lock Washer

257392

32

Hex Bolt

243025

33

righthand thread Ball Joint

265615

34

Linkage Control Rod

730265

35

Clip Backing

722012

36

Steering Linkage Rod

730300

37

Steering Linkage Rod

730264

38

Clevis Yoke

265537

39

Clevis Pin

261284
