Genuine OEM Grasshopper Lawn Mower Parts

Genuine OEM Grasshopper® Mower Parts Diagrams

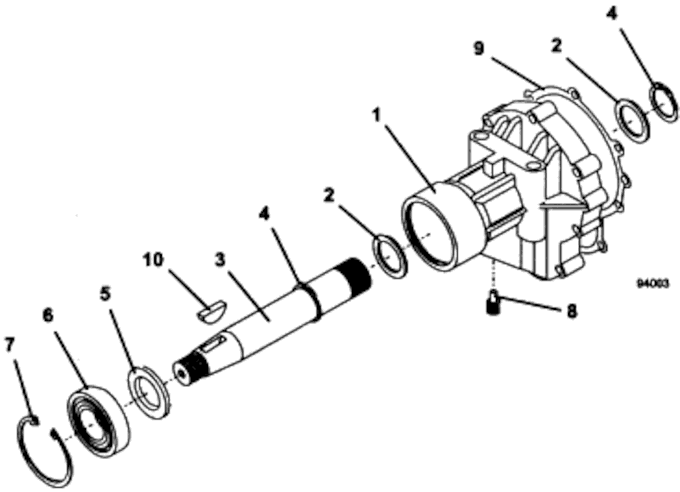

718D • Axle Housing

1991

Axle Housing

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.

Item #

Description

Part Number

1

Axle Housing

391700

2

Washer

257112

3

Axle Shaft w/Key

603098

4

External Retainer

263545

5

Seal

125383

6

Ball Bearing

120086

7

Internal Retainer

263212

8

Magnetic Plug

365509

9

Axle Housing Gasket

420340

10

Woodruff Key

281845
