Genuine OEM Grasshopper Lawn Mower Parts

Genuine OEM Grasshopper® Mower Parts Diagrams

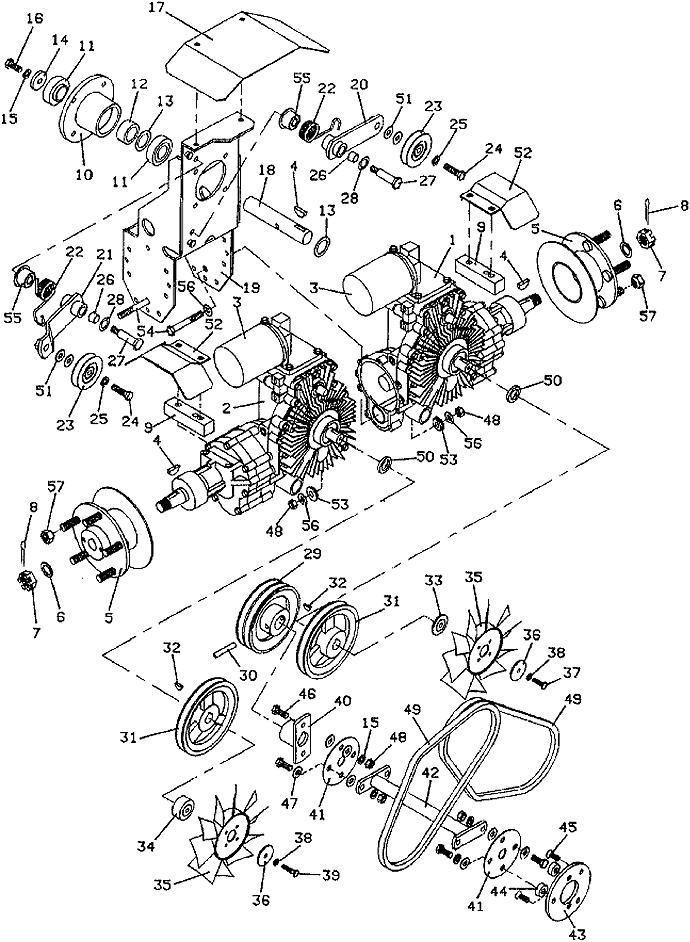

718D • Drive Assembly

1991

Drive Assembly

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.

Item #

Description

Part Number

1

Rebuilt right Transmission Assembly without Brake W.67

603845

-

right Transmission without Brake

391205

2

Rebuilt left Transmission Assembly without Brake W.67

603844

-

left Transmission without Brake

391204

3

Transaxle Oil Filter

100850

4

Woodruff Key

281845

5

Drive Hub Assembly with Rotor

603419

-

Wheel Stud Bolt

248570

6

14 GA Bushing Washer

257091

7

Nylon Insert Nut

253500

8

Cotter Pin

260652

9

Mounting Spacer

901760

10

Vac Fan Spindle Housing

320522

11

Ball Bearing with LC

120080

12

Spacer

282630

13

Washer

257106

14

Washer

883801

15

Lock Washer

257412

16

Hex Bolt

243331

17

700 Drive Shield

722203

18

Shaft

882840

19

Center Drive Mount

643615

20

Lower Idler Arm Assembly with Spring

603066

21

Upper Idler Arm Assembly with Spring<

603065

22

Torsion Spring

284425

23

Idler

393312

24

Hex Bolt

243340

25

Lock Washer

257412

26

Nylon Bearing

422558

27

Shoulder Bolt

259745

28

Steel Shim

282350

29

Sheave

415630

30

Roll Pin

261061

31

Sheave

415560

-

Sheave

415559

32

Woodruff Key

281829

33

right Fan Spacer

423725

-

Fan Spacer

423723

34

left Fan Spacer

423726

-

Fan Spacer

423724

35

7" counterclockwise Nylon Fan

320856

36

Flat Washer

774023

37

Hex Bolt

243030

38

Lock Washer

257392

39

Hex Bolt

243038

40

Flex Coupling Hub

824547

41

Flex Coupling Disc

821530

42

Coupling Connector

643219

43

Coupling Adapter

783458

44

Coupling Spacer

902318

45

Flat Head M8 Cap Screw

270346

46

Hex Bolt

243330

47

Washer

257040

48

Nut

254450

49

Belt

381904

50

Washer

775003

-

Washer

775002

51

Washer

257030

52

Disc Brake Shield

724212

53

Washer

882003

54

Hex Bolt

243365

55

Idler Arm Double Bearing

422750

56

External Star Washer

257410

57

Lug Nut

254472

return to 718D index return to top of page
