Genuine OEM Grasshopper Lawn Mower Parts

Genuine OEM Grasshopper® Mower Parts Diagrams

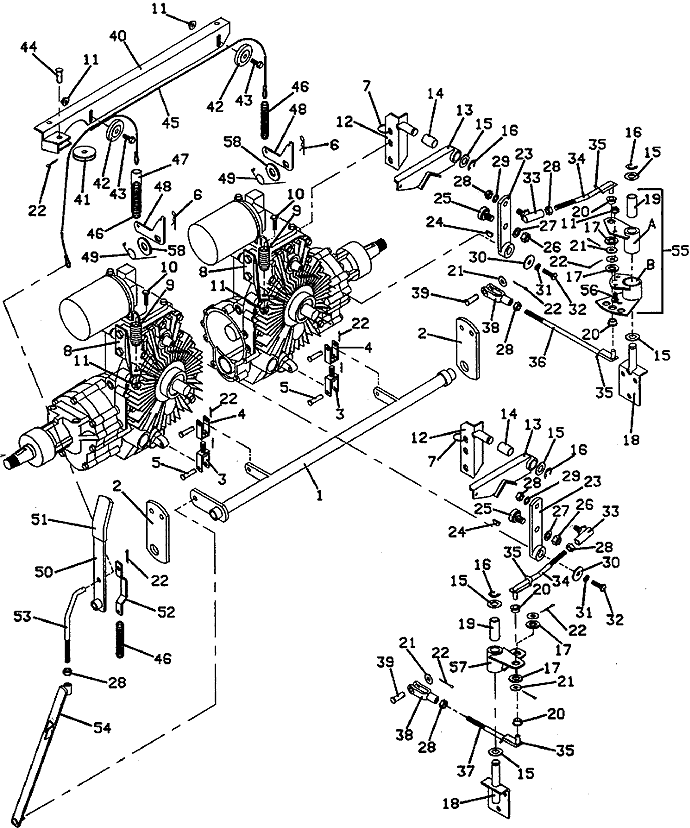

721 • Drive Linkage

1989

Drive Linkage Assembly

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.

Item #

Description

Part Number

1

Brake Pivot Tube

643719

2

Brake Pivot Rod Mount

783179

3

male Brake Yoke

643953

4

female Brake Yoke

643952

5

Clevis Pin

261236

6

Hair Pin

260520

7

Ring Spring

284200

8

Neutral Return Spring Bracket

729072

9

Extension Spring

283823

10

Hex Bolt

243030

11

Whiz Nut

253025

12

Neutral Return Pivot Mount

643603

13

Neutral Return Arm with Bearing

603084

14

Nylon Bearing

422560

15

Washer

257063

16

External Retainer

263500

17

Washer

257063

18

Control Linkage Pivot

643627

19

Nylon Bearing

422585

20

Nylon Bearing

422540

21

Cotter Pin

260624

22

Cotter Pin

260624

23

700 Control Arm

643057

24

Woodruff Key

281823

25

Eccentric Roller Assembly

603726

26

Nut

254450

27

Lock Washer

257412

28

Nut

254441

29

Lock Washer

257402

30

Flat Washer

774012

31

Lock Washer

257392

32

Hex Bolt

243025

33

righthand thread Ball Joint

265615

34

Linkage Control Rod

730265

35

Clip Backing

722012

36

Steering Linkage Rod

730300

37

Steering Linkage Rod

730264

38

Clevis Yoke

265537

39

Clevis Pin

261284

40

Cable Guide Mount

643539

41

Dump Valve Cable Pulley

884065

42

right Fan Spacer

423725

43

Hex Whiz Bolt

253175

44

Clevis Pin

261278

45

Dump Valve Cable Assembly

603208

46

Extension Spring

283790

47

Spring Cover Tube

822685

48

Dump Valve Lever

730088

49

Torsion Spring

284418

50

Brake Lever

643511

51

Handle Grip

422150

52

Spring Bracket

732307

53

Brake Linkage Rod

730291

54

Brake Linkage Strap

824646

55

right Adjustable Steering Pivot Assembly

603012

56

Hex Whiz Bolt

253173

57

left Linkage Pivot with Bearing

603566

58

Washer

257071
