Genuine OEM Grasshopper Lawn Mower Parts

Genuine OEM Grasshopper® Mower Parts Diagrams

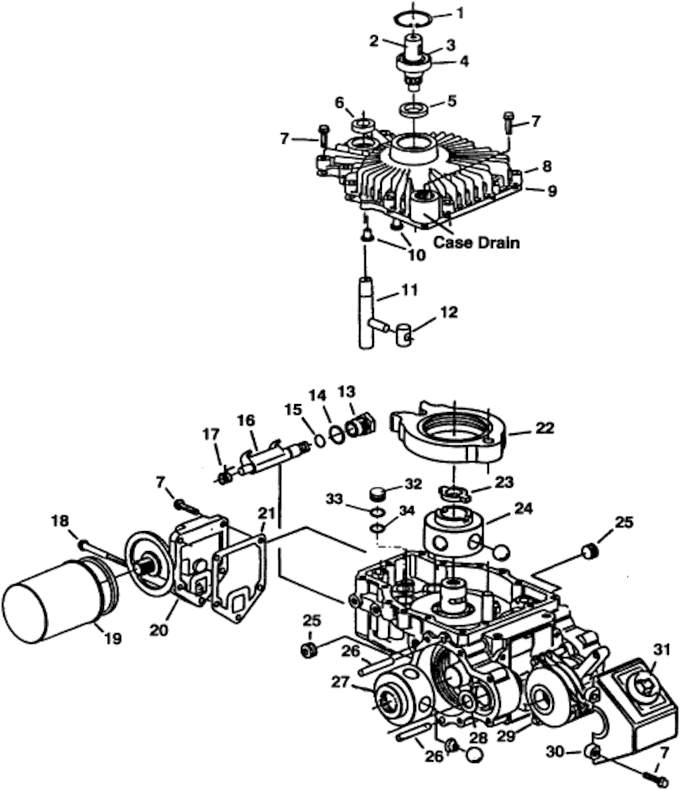

721 • Main Housing Assembly

1990

Main Housing Assembly

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.

Item #

Description

Part Number

1

Internal Retainer

263175

2

Input Shaft

103743

-

NOT AVAILABLE

103738

3

External Retainer

263526

-

External Retainer

263524

4

Ball Bearing

120064

-

Ball Bearing

120054

5

Seal

125335

-

Seal

125250

6

Seal

125170

7

Machine Screw

250296

8

Input Shaft Pump Cover

103770

-

Input Shaft Pump Cover

103769

9

Gasket - Pump Cover

420341

10

Wear Button

103722

11

Control Shaft

103748

12

Cam Ring Insert

103720

13

Dump Valve Fitting

103740

14

O-Ring

126537

15

O-Ring

126526

16

Dump Valve Bracket

284704

17

Torsion Spring

284409

18

NOT AVAILABLE

000000

19

Transaxle Oil Filter

100850

20

Hydraulic Base Filter

103733

21

Top Cover Gasket

420342

22

Cam Ring Assembly

103777

23

Input Drive

103745

24

Pump Rotor Assembly - NOT AVAILABLE

103776

25

NOT AVAILABLE

000000

26

.278 Dowel

103744

27

Motor Rotor

103775

28

Seal

125260

29

NOT AVAILABLE

000000

30

Brake Cover

103767

31

NOT AVAILABLE

000000

32

Dampening Piston Assembly - NOT AVAILABLE

103727

33

Backup Ring

126636

34

O-Ring

126530

35

Check Valve Body

103700

36

Steel Ball

300035

37

Check Valve Ball Retainer

103699

Return to 721 Index Return to Top of Page
