Genuine OEM Grasshopper Lawn Mower Parts

Genuine OEM Grasshopper® Mower Parts Diagrams

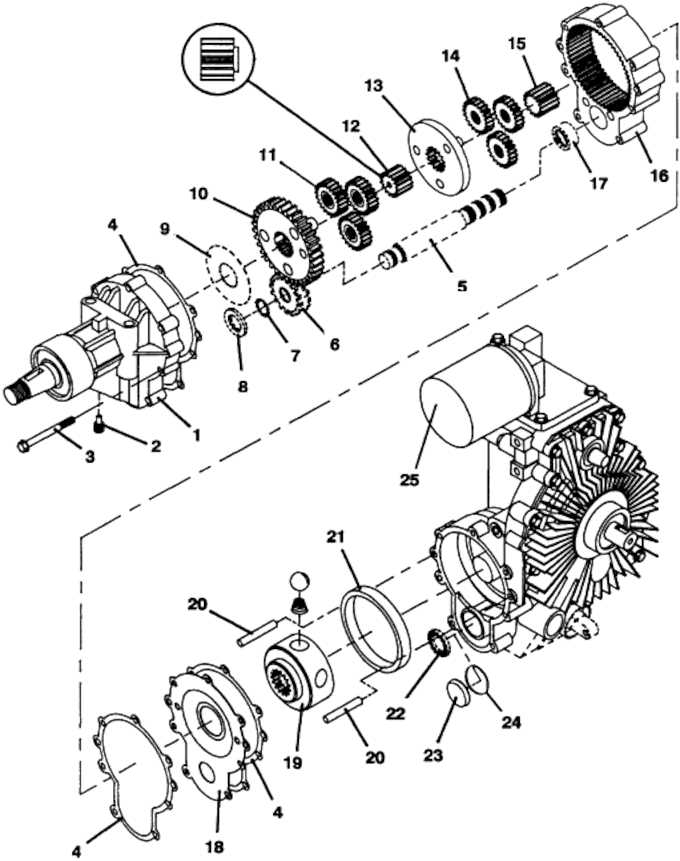

721 • Final Drive Assembly

1991

Final Drive Assembly

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.

Item #

Description

Part Number

1

Axle Housing

391700

2

Magnetic Plug

365509

3

Machine Screw

250522

4

Axle Housing Gasket

420340

5

.750 Shaft

393505

6

Gear Brake

392820

7

External Retainer

263522

8

Spacer

282626

9

NOT AVAILABLE

257113

10

Secondary Carrier

392801

-

Secondary Carrier - NOT AVAILABLE

392804

11

Secondary Planetary ST Gear

392826

-

Secondary Planetary PM Gear

392827

12

Secondary Sun-Finished Bore Gear

392833

-

Secondary Sun-Finished PM Gear

392832

13

Primary Carrier

392800

14

Primary Planetary Gear

392825

15

Primary Sun Gear

392830

16

Ring Gear

392835

17

Needle Bearing

121583

18

Wear Plate

103742

19

Rotor Motor

103775

20

.278 Dowel

103744

21

Cup Bearing

123758

22

Seal

125260

23

NOT AVAILABLE

000000

24

O-Ring

126544

25

Transaxle Oil Filter

100850

-

Oil Filter Assembly w/Gasket - NOT AVAILABLE

603605

Return to 721 Index Return to Top of Page
