Genuine OEM Grasshopper® Mower Parts Diagrams

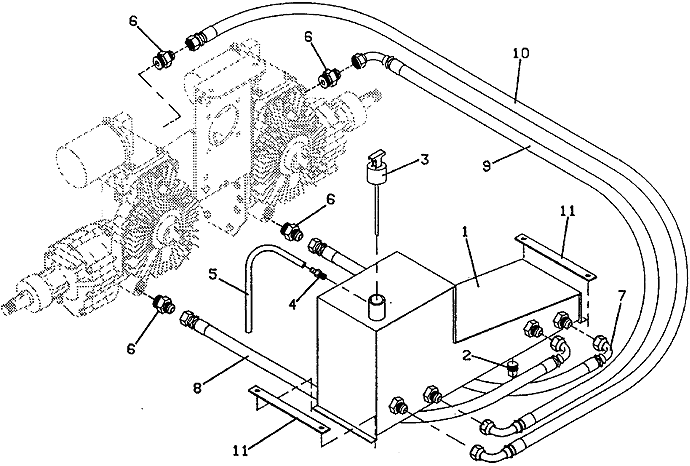

721 • Reservoir & Hose Assembly
1991
Click On a Part Number Below for Details
NOTE: If the part number you select is not linked to the shopping cart, call toll-free 866-698-4070 for availability.
Item # |
Description |
Part Number |
1 |
Reservoir Assembly with Dipstick |
603708 |
2 |
3/8 inch Metal Pipe Plug |
365515 |
3 |
Steel Oil Reservoir Dipstick |
100729 |
4 |
Straight Barbed Fitting |
363840 |
5 |
Clear Vent Hose |
821724 |
6 |
Steel O-Ring Flare Fitting |
363834 |
7 |
Hose Assembly |
424335 |
8 |
Hose Assembly |
424342 |
9 |
Hose Assembly |
424348 |
10 |
Hose Assembly |
424360 |
11 |
Reservoir Hold Down Bracket |
774084 |
