Genuine OEM Grasshopper® Mower Parts Diagrams

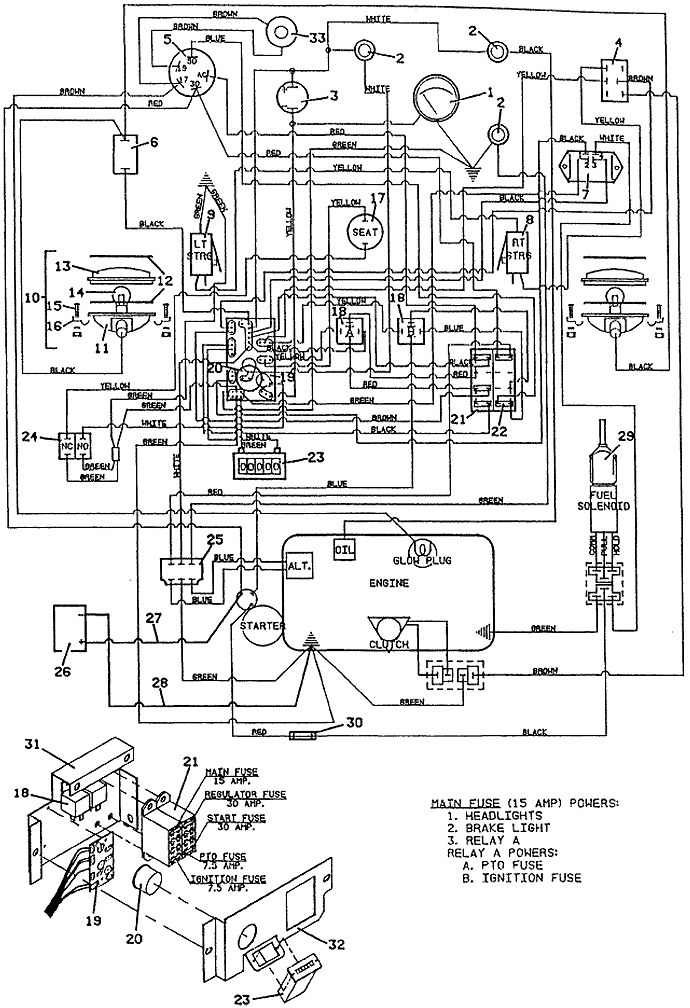

721 • Wiring & Lights
1991
Click On a Part Number Below for Details
NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.
Item # |
Description |
Part Number |
1 |
Temperature Gauge |
141152 |
2 |
Indicator Light |
182310 |
3 |
Buzzer & Mount Assembly |
603190 |
4 |
PTO Switch & Cover Assembly |
604796 |
5 |
Kubota Sealed Key Switch |
183827 |
6 |
Light Toggle Switch |
183950 |
7 |
Interlock Switch Module |
184220 |
8 |
Lever Switch |
183860 |
- |
right Steering Switch Mount |
720160 |
9 |
Lever Switch |
183860 |
- |
left Steering Switch Mount |
720161 |
10 |
Worklamp Assembly |
182265 |
11 |
Rectangular Lamp Housing |
182350 |
12 |
Lamp Assembly Gasket |
420550 |
13 |
Rectangular Lamp Lens |
182400 |
14 |
Worklamp Light Bulb |
182000 |
15 |
Machine Screw |
250258 |
16 |
Conduit Clip |
180635 |
17 |
Seat Switch |
183870 |
18 |
12v DC Relay |
184272 |
- |
Type 1 6mm Push-On |
184570 |
- |
.250 Fast-On Terminal |
184581 |
- |
5 Way Female Connector |
184926 |
19 |
718D Wiring Assembly |
603864 |
20 |
12 volt Flasher |
182440 |
21 |
Fuse Block |
181722 |
- |
1 Wire Clip |
184458 |
- |
2 Wire Clip |
184460 |
- |
Double Clip |
184472 |
22 |
30 amp ATC Auto Fuse |
181470 |
- |
15 amp ATC Auto Fuse |
181465 |
- |
7.5 amp ATC Auto Fuse |
181460 |
23 |
Snap-In Hour Meter |
141551 |
24 |
Brake Interlock Switch |
183894 |
25 |
12v Voltage Regulator |
185530 |
26 |
12 Volt Side Post Wet Battery |
180130 |
- |
Battery Box |
643135 |
- |
Battery Box Cover |
643241 |
- |
Battery Clamp |
720604 |
27 |
11" Red Battery Cable |
180310 |
- |
Starter Terminal Boot |
425219 |
28 |
24" Red Battery Cable |
180322 |
29 |
Fuel Solenoid Assembly |
603350 |
30 |
25 amp Fuse |
181585 |
31 |
Fuse Block Mount |
722204 |
32 |
Fuse Block Cover |
722176 |
33 |
Kubota Glow Indicator Light |
182320 |
34 |
721/725 Terminal Board with Wires |
603868 |
