Genuine OEM Grasshopper Lawn Mower Parts

Genuine OEM Grasshopper® Mower Parts Diagrams

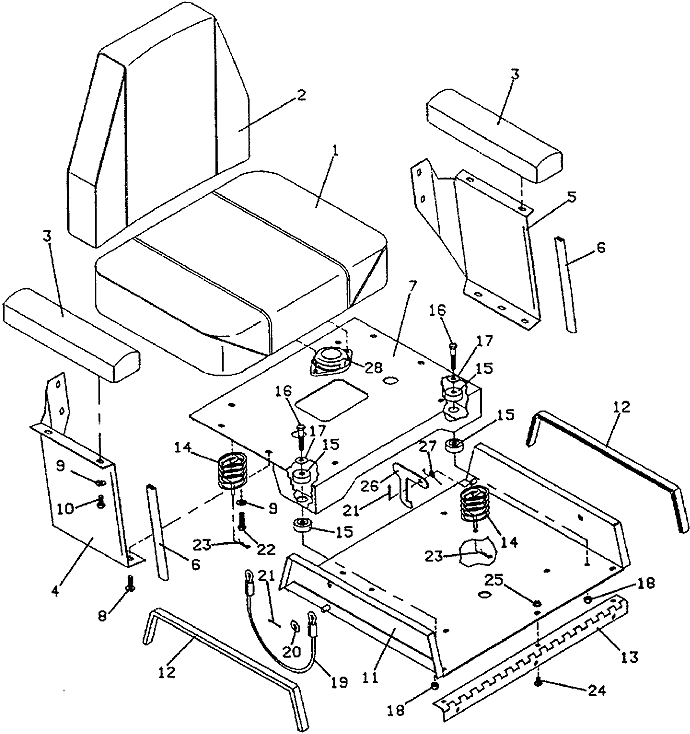

721 • Seat Assembly

1994

Seat Assembly

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.

Item #

Description

Part Number

1

Formed Seat Cushion

321515

2

Back Cushion

321511

3

Arm Rest

321501

4

Right Side Member

724310

5

Left Side Member

724311

6

Seat Edge Trim

822630

7

Seat Bottom Panel with Switch

643664

8

Hex Flange Whiz Bolt

253193

9

Star External Washer

257410

10

Hex Bolt

243195

11

Seat Support Panel

643622

12

700 Seat Mount Trim

822645

13

700 Seat Hinge

820166

14

Compression Spring

283515

15

Step Bushing

257037

16

Hex Bolt

243215

17

Washer

257030

18

Nut with Nylon Insert

253450

19

Seat Cable Assembly

323568

20

Washer

257040

21

Cotter Pin

260648

22

Hex Bolt

243210

23

Hair Pin

260520

24

Truss Whiz Bolt

253176

25

Whiz Nut

253025

26

Seat Latch

774248

27

Torsion Spring

284407

28

Seat Switch

183870

29

700 Seat Assembly with Switch Mount

603756

return to 721 index return to top of page
