Genuine OEM Grasshopper Lawn Mower Parts

Genuine OEM Grasshopper® Mower Parts Diagrams

721 • Reservoir & Hose Assembly

1995

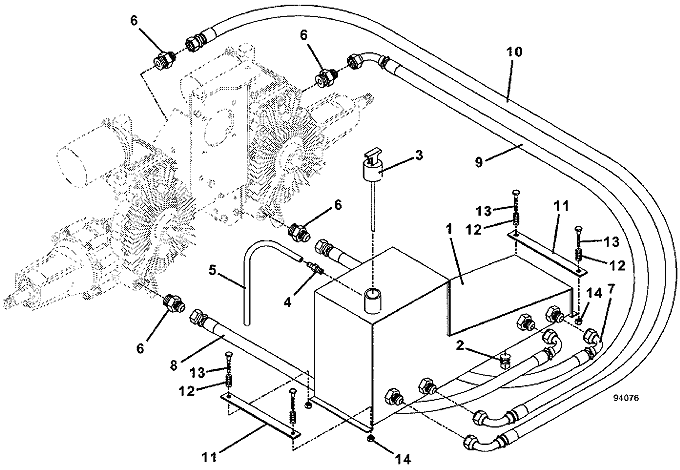

Reservoir and Hose Assembly

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.

Item #

Description

Part Number

1

Reservoir Assembly with Dipstick

603708

2

3/8 inch Metal Pipe Plug

365515

3

Steel Oil Reservoir Dipstick

100729

4

Straight Barbed Fitting

363826

5

Clear Vent Hose

821724

6

Steel O-Ring Flare Fitting

363834

7

Hose Assembly

424335

8

Hose Assembly

424342

9

Hose Assembly

424348

10

Hose Assembly

424360

11

Reservoir Hold Down Bracket

774084

12

Compression Spring

283525

13

Hex Bolt

243035

14

Nylon Insert Nut

253440
