Genuine OEM Grasshopper Lawn Mower Parts

Genuine OEM Grasshopper® Mower Parts Diagrams

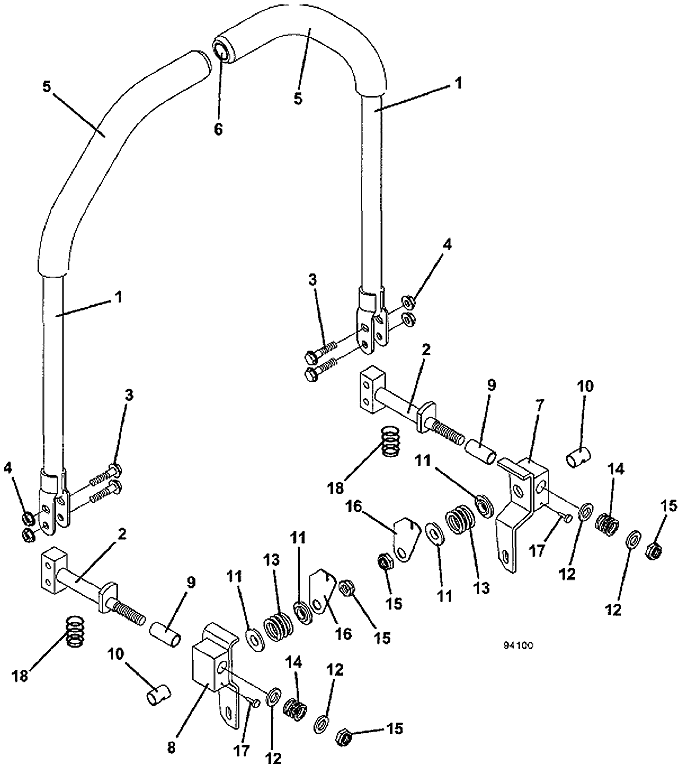

721 • Steering Assembly

1995

Steering Assembly

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.

Item #

Description

Part Number

1

Steering Lever

643497

2

Steering Lever Mount

603558

3

Hex Flange Whiz Bolt

253195

4

Whiz Nut

253035

5

Handle Grip

422179

6

.75 inch ID Vinyl Cap

422095

7

Right Steering Ball Joint Pivot

643660

8

Left Steering Ball Joint Pivot

643661

9

Nylon Bearing

422580

10

Nylon Bearing with Slot

422561

11

Washer

257067

12

Washer

257063

13

Compression Spring

283381

14

Compression Spring

283324

15

Nut with Nylon Insert

253470

16

700 Spring Plate

772012

17

1/8 inch diameter Plastic Plug

422055

18

Compression Spring

283312
