Genuine OEM Grasshopper Lawn Mower Parts

Genuine OEM Grasshopper® Mower Parts Diagrams

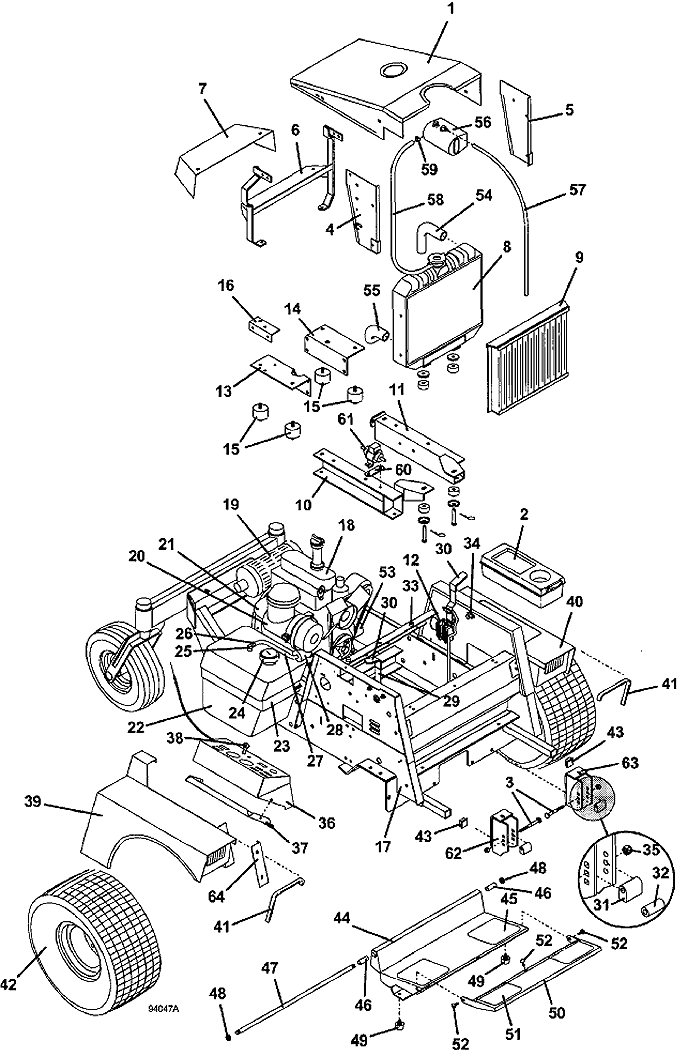

721 • Tractor Assembly

1995

Tractor Assembly

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.

Item #

Description

Part Number

1

700 Hood with Decals

693300

2

Tool Box

422040

3

Special Carriage Bolt

247280

4

right Grille Support

643799

5

Left Grille Support w/Decal

693260

6

rear Hood Support

643797

7

Clutch Shield

643766

8

Kubota Radiator

101605

-

Kubota Radiator

101610

9

700 Radiator Grille with Decal

693256

10

Lower right Engine Mount

643604

11

Lower left Engine Mount

643605

12

12v Voltage Regulator

185530

13

Upper right Engine Mount

643292

14

Upper left Engine Mount

643291

15

Vibration Isolator

424078

16

Coil Bracket

724091

17

721/721D Tractor Frame

643394

18

Kubota Gas Engine

100170

-

Kubota Gas Engine

100171

19

Muffler & Gasket Assembly

603590

20

Kubota Air Filter

100940

21

Air Intake Hose

424519

22

Gasoline Fuel Tank Assembly (Brown)

603817

23

Fuel Tank Mounting Bracket

643144

24

Cap with Fuel Level

141125

25

Fuel Draw Tube

101818

26

Screw-type Hose Clamp

280270

27

Fuel Line Hose

821713

28

Kubota Fuel Pre-Filter

101005

29

721/725/725G2 Throttle Assembly

604823

-

Throttle Cable Replacement Kit for Gas Engine

604820

30

Handle Grip

422150

31

Deck Mount Bushing

282575

32

Floating Deck Mount Bushing

282576

33

Rubber Bumper

424015

34

Spacer

902280

-

Hex Bolt

243330

-

Washer

257040

35

Nylon Insert Nut

253460

36

Console w/Decal for Liquid-Cooled Engines

693103

37

Side Console Filler Panel

721136

38

Mechanical Choke

142218

39

700S right Fender with Decals

693204

-

721 Right Trim Decal

163208

-

725 Right Trim Decal

163216

40

700S left Fender with Decals

693205

-

721 Left Trim Decal

163209

-

725 Left Trim Decal

163217

41

700/900 Fender Edge Trim

822635

42

20 x 10 x 8 Tan Wheel & Turf Tire

483921

-

20 x 10 x 8 Turf Tire

482471

-

21 x 11 x 8 Bar Tread Tire

482478

-

5-Bolt 8 x 6 Wheel

483410

-

5-Bolt 8 x 9.125 Wheel

483415

-

21 x 11 x 8 right Wheel & Bar Tread Tire

483930

-

21 x 11 x 8 left Wheel & Bar Tread Tire

483931

43

1 inch ID Square Plastic Plug

422065

44

Foot Platform Assembly

603343

45

Foot Rest Tread

420905

46

Nylon Bearing

422615

47

700 Foot Platform Pivot Rod

780673

48

Nylon Insert Nut

253470

49

Rubber Bumper

424052

50

700 Foot Platform Extension

603301

51

Foot Rest Tread Extension

420904

52

Carriage Bolt

247130

53

Kubota Oil Filter

100800

54

Upper Radiator Hose

101052

-

Upper Radiator Hose

101054

55

Lower Radiator Hose

101053

-

Lower Radiator Hose

101055

56

Expansion Tank

422012

57

Clear Vent Hose

821748

58

Hose

821749

59

Spring Hose Clamp

280260

60

Fuel Pump Mount Plate

782529

61

Electric Fuel Pump

101510

62

700/900 right Quarterdeck Deck Mount

643092

63

700/900 left Quarterdeck Deck Mount

643093

64

right Fender Cover Panel

722062

65

721 Decal Set

603271

66

725 Decal Set

603275

-

725 Right Trim Decal

163216
