Genuine OEM Grasshopper® Mower Parts Diagrams

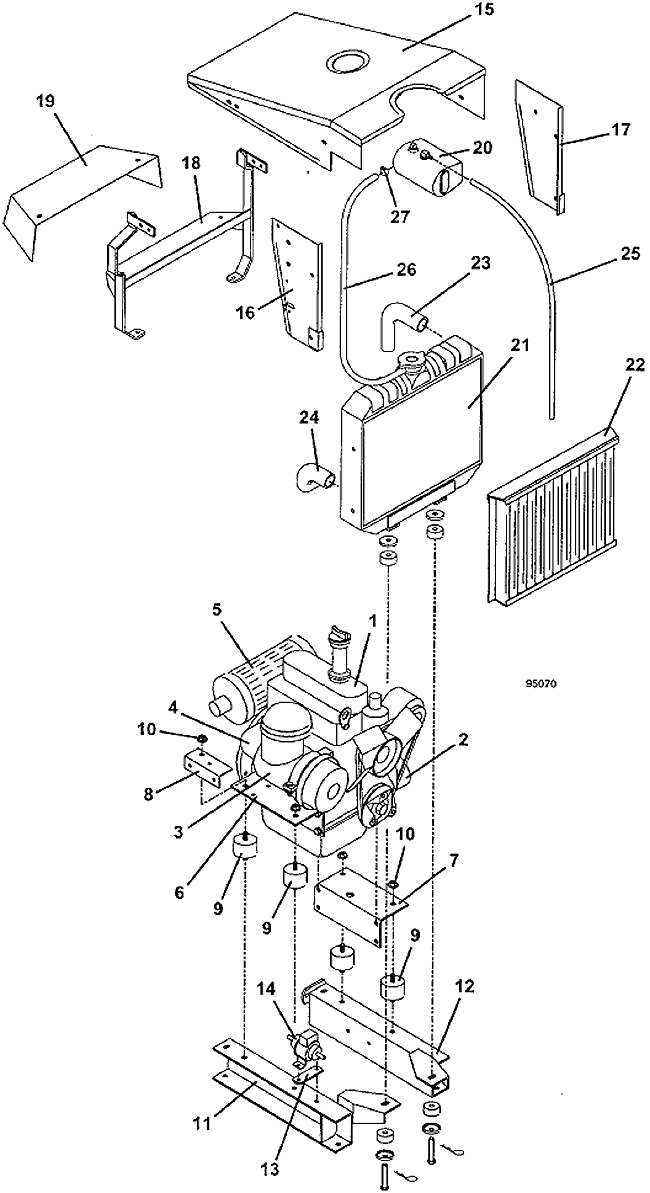

721 • Engine Assembly
1998
Click On a Part Number Below for Details
NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.
Item # |
Description |
Part Number |
1 |
Kubota Gas Engine |
100169 |
2 |
Kubota Oil Filter |
100800 |
3 |
Kubota Air Filter |
100940 |
4 |
Air Intake Hose |
424519 |
5 |
Muffler & Gasket Assembly |
603590 |
- |
Kubota Exhaust Flange Gasket |
101040 |
6 |
Upper right Engine Mount |
643292 |
7 |
Upper left Engine Mount |
643291 |
8 |
Coil Bracket |
724091 |
9 |
Vibration Isolator |
424078 |
10 |
Whiz Nut |
253043 |
11 |
Lower right Engine Mount |
643604 |
12 |
Lower left Engine Mount |
643605 |
13 |
Fuel Pump Mount Plate |
782529 |
14 |
Electric Fuel Pump |
101510 |
15 |
700 Hood with Decals |
693300 |
16 |
right Grille Support |
643799 |
17 |
left Grille Support with Decal |
693260 |
18 |
rear Hood Support |
643797 |
19 |
Clutch Shield |
643766 |
20 |
Expansion Tank |
422012 |
21 |
Kubota Radiator |
101605 |
22 |
700 Radiator Grille with Decal |
693256 |
23 |
Upper Radiator Hose |
101052 |
24 |
Lower Radiator Hose |
101053 |
25 |
Clear Vent Hose |
821748 |
26 |
Hose |
821749 |
27 |
Spring Hose Clamp |
280260 |
