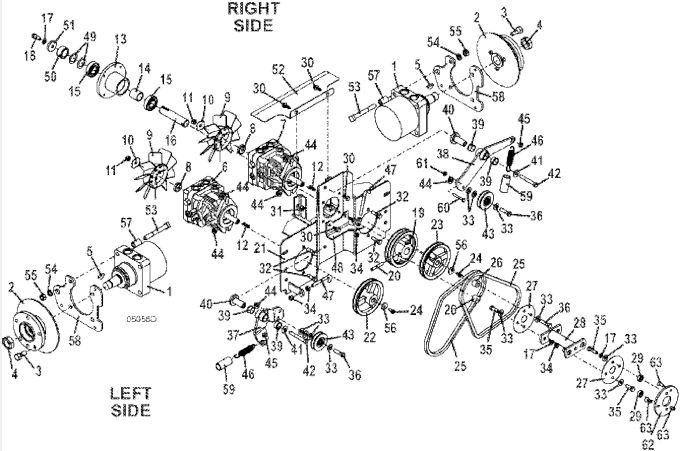

721DH2 • Drive Assembly

2005

Drive Assembly

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.

Item #

Description

Part Number

1

H2 Wheel Motor with Hub

603611

2

Hub & Rotor Assembly

604442

3

Lug Bolt

248565

4

Nut

254522

5

Woodruff Key

281860

6

H2 Left Hydro Pump

391434

7

H2 Right Hydro Pump

391435

8

H2 Fan Hub

130430

9

H2 & T Hydro Fan

130431

10

Fan Retainer Washer

130432

11

Nylon Insert Nut

253461

12

Square Key

281560

13

Vac Fan Spindle Housing

320522

14

Drive Bearing Spacer

903650

15

2 Metal Seal 25mm Ball Bearing

110080

16

700G2 Drive Shaft

882052

17

Lock Washer

257412

18

Hex Bolt

243331

19

Sheave

415037

20

Roll Pin

261061

21

16AG2 Pump Mount

644629

22

Straight Bore Sheave

415027

23

Sheave

415028

24

Flange Hex Bolt w/Ser

270822

25

Belt

381537

26

G2 Drive Spacer

902328

27

Flex Coupling Disc

821530

28

Coupling Connector

644118

29

Coupling Spacer

902318

30

Hex Whiz Flange Bolt

253192

31

Whiz Nut

253035

32

Hex Bolt

243335

33

Washer

257030

34

Nut

254450

35

Bolt

243330

36

Bolt

243340

37

Idler Arm Assembly

824491

38

G2 Upper Idler Arm Assembly

604450

39

Oilite Bearing

121756

40

Pedestal Bearing

121650

41

Washer

257040

42

Hex Bolt

243360

43

Idler

604449

44

Whiz Nut

253043

45

Nylon Bearing

422520

46

Extension Spring with Swivel

283819

47

Idler Adjustment J Bolt

730391

48

928 Spring Bracket

725028

49

Washer

257106

50

Spacer

282630

51

Washer

883801

52

G2 Fan Shield

723154

53

Square Head Bolt

243622

54

Lock Washer

257432

55

Nut

254470

56

Flat Washer

774012

57

Wheel Motor Spacer

902299

58

Brake & Traction Mount Kit

776274

59

Clear Tubing

822684

60

Hex Bolt

243038

61

Whiz Nut

253025

62

Coupling Adapter

783458

63

M8 Flat Head Cap Screw

270346
