Genuine OEM Grasshopper Lawn Mower Parts

Genuine OEM Grasshopper® Mower Parts Diagrams

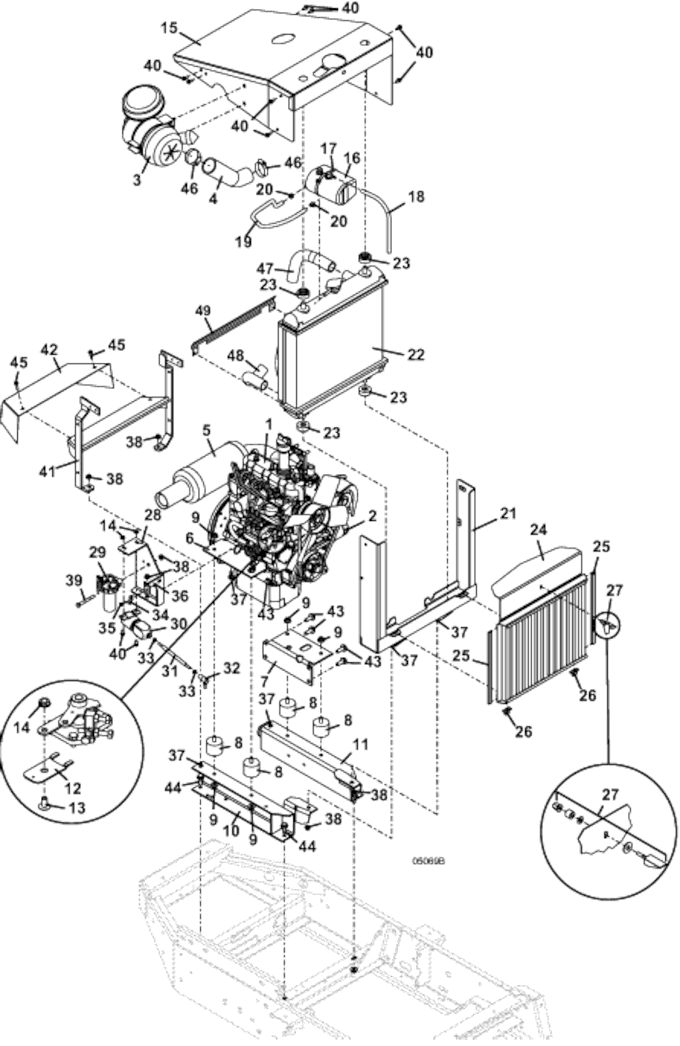

721DH2 • Engine Assembly

2007

Engine Assembly

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.

Item #

Description

Part Number

1

Kubota Diesel Engine

100176

2

Kubota Oil Filter

100800

3

Air Cleaner

100208

-

Air Cleaner Clip Cover

100197

-

Not Available

100198

-

Dust Ejector (Duck Bill)

100202

-

Air Cleaner Waether Hood

100218

-

Primary Air Filter (Short)

100942

-

Inner Air Filter (Short)

100943

4

Air Intake Hose

424517

5

Muffler and Gasket Assembly

603590

-

Kubota Exhaust Flange Gasket

101040

6

Upper Right Engine Mount

643292

7

Upper Left Engine Mount

643291

8

Vibration Isolator

424078

9

Whiz Nut

253043

10

721D Lower Right Engine Mount

643864

11

721D Lower Left Engine Mount

643865

12

Extension Linkage

723063

13

Truss Whiz Bolt

253176

14

Whiz Nut

253025

15

721DH2 Hood Assembly

644384

16

Expansion Tank

422012

17

Tie

423154

18

Clear Vent Hose

821748

19

Hose

821749

20

Hose Spring Clamp

280260

21

721DH2 Radiator Mount

644651

22

Kubota Radiator

101612

23

Radiator Mount Isolation Bushing

101080

24

721DH2 Grille

644671

25

Radiator Grille Trim

822636

26

Rear Belt Shield Isolator

422090

27

Swell Latch Assembly

604805

28

Solenoid/Filter Mount

755121

29

Kubota Fuel Filter

101000

30

Fuel Solenoid Assembly

603350

31

Fuel Solenoid Cable Assembly

603209

32

Ball Joint

265610

33

Nut

254434

34

Conduit Clip

180635

35

Machine Screw

250258

36

Whiz Nut

253020

37

Hex Flanged Whiz Bolt

253192

38

Whiz Nut

253035

39

Whiz Bolt

253197

40

Hex Whiz Bolt

253173

41

721D Euro Rear Hood Support

643866

42

Clutch Shield

643766

43

Hex Bolt

271121

44

Flanged Whiz Bolt

253203

45

Hex Whiz Bolt

253175

46

Screw Type Hose Clamp

280303

47

Upper Radiator Hose

101054

48

Lower Radiator Hose

101055

49

Fan Shield

721006
