Genuine OEM Grasshopper Lawn Mower Parts

Genuine OEM Grasshopper® Mower Parts Diagrams

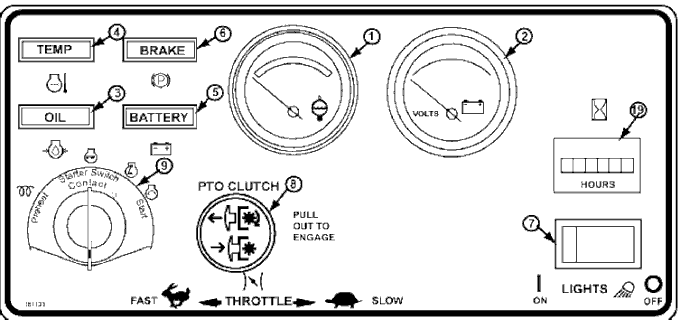

721DT • Console

2010-5

Console

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.

Item #

Description

Part Number

1

Zoned Electric Temperature Gauge

141160

2

Voltimeter Gauge

141200

3

Oil Indicator Light

182327

4

Temperature Indicator Light

182328

5

Battery Indicator Light

182325

6

Brake Indicator Light

182326

7

Rocker Switch

184179

8

Push/Pull Switch

183925

9

Kubota Sealed Key Switch

183827

-

Kubota double Notch Ingnition Key

101106

23

Snap-In Hour Meter

141551

24

Console Decal

161123

Return to 721DT Index Return to Top
