Genuine OEM Grasshopper Lawn Mower Parts

Genuine OEM Grasshopper® Mower Parts Diagrams

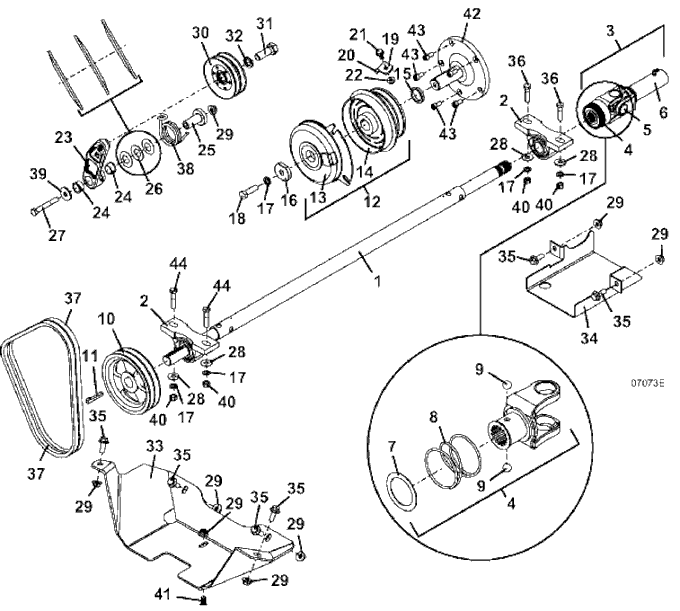

721DT • PTO Shaft & Clutch Assembly

2010-5

PTO Shaft & Clutch Assembly

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.

Item #

Description

Part Number

1

Power Shaft

644727

2

Pillowblock SC Bearing

122044

3

UN Half Sleeve

398914

4

QD Splined Yoke

401019

5

Cross & Bearing

121010

6

Yoke with Sleeve

401017

7

External Retainer

263660

8

Compression Spring

283525

9

Steel Ball

300014

10

Sheave

415650

11

Gib Square Key

281588

12

1.125 Plg Hdbrg S Brake

388771

13

Field Assembly w/Brake

388875

14

Armature & Rotor Assembly

388866

15

Spacer

902583

16

Washer

257039

17

Lock Washer

257412

18

GR 8 Hex Bolt

243337

19

Clutch Anti-Rotation Bracket

732407

20

Clutch Bracket Cover

422087

21

Hex Flange Whiz Bolt

253192

22

Whiz Nut

253035

23

600/700 T/T6 Idler Arm Assembly

824467

24

Oilite Bearing

121756

25

Pedestal Bearing

121651

26

Spring Washer

257319

27

Hex Bolt

243360

28

Washer

257040

29

Whiz Nut

253043

30

Sheave

415610

31

Hex Bolt

243805

32

Lock Washer

257452

33

700DT Sheave Guard

644424

34

PTO Shaft Shield

729287

35

Whiz Flange Bolt

253203

36

Hex Bolt

243340

37

Belt

381914

38

Torsion Spring

284428

39

Washer

774020

40

Nut

254450

41

Carriage Bolt

247253

42

Clutch Stub Shaft

824637

43

M8 Socket Head Screw

270075

44

Hex Bolt

243343

Return to 721DT Index Return to Top
