Genuine OEM Grasshopper Lawn Mower Parts

Genuine OEM Grasshopper® Mower Parts Diagrams

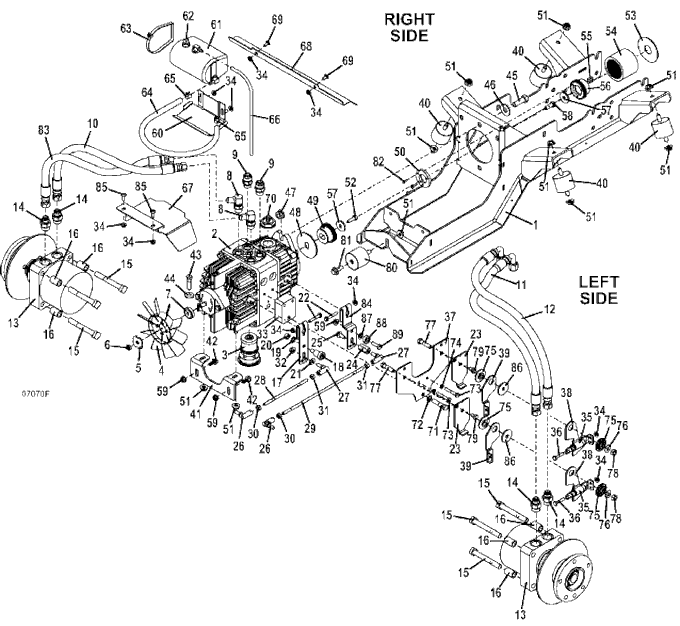

721DT • Drive Assembly

2011

Drive Assembly

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.

Item #

Description

Part Number

1

721DT Drive Train Mount

644878

2

Hydro

391467

3

Tandem Transmission Filter

130505

4

H2&T Hydro Fan

130431

5

Fan Retainer Washer

130432

6

Nylon Insert Nut

253461

7

Fan Hub

130430

8

O-Ring Adapter

360061

9

Fitting Adapter

360064

10

Hose Assembly

424384

11

Hose Assembly

424385

12

Hose Assembly

424386

13

H2 Wheel Motor with Hub

603611

14

O-Ring Adapter

360063

15

Square Head Bolt

243622

16

Wheel Motor Spacer

902299

17

6/700T Control Arm

729661

18

6/700T Eccentric Roller Assembly

603734

19

External Star Washer

257410

20

Nut

254450

21

Flat Washer

257019

22

Hex Whiz Bolt

253182

23

6/700T Return Adjustment Plate

729660

24

Neutral Return Spacer

783730

25

Hex Whiz Bolt

253186

26

Righthand Thread Ball Joint

265615

27

Lefthand Thread Ball Joint

265616

28

Steering Rod

780150

29

Steering Rod

780171

30

Nut

254441

31

Nut

254444

32

Whiz Nut

253038

33

Plastic Return Spacer

422041

34

Whiz Nut

253025

35

Extension Spring

283823

36

Hex Bolt

243030

37

6/700T Neutral Return Mount

774299

38

Return Arm

729639

39

Neutral Return Arm

729398

40

Vibration Isolator

424073

41

Front Pump Mount

725563

42

Hex Flange Whiz Bolt

253192

43

Hex Bolt

243340

44

Washer

257040

45

Hex Bolt

243570

46

Washer

257060

47

Whiz nut

253066

48

DD Washer

774175

49

Coupler Hub

388577

50

Coupling Stabilizer w/Holes

424151

51

Whiz Nut

253043

52

Hex Bolt

243206

53

3" (outer dimension) Washer

774176

54

Nylon Coupler Sleeve

388560

55

Square Key

281580

56

Flex Coupler w/Holes

831034

57

Washer

774020

58

GR 8 Hex Bolt

243337

59

Whiz Nut

253035

60

Oil Reservoir W/A Bracket

644094

61

Hydraulic Expansion Tank

422033

62

3/8 inch Threaded Plastic Plug

365516

63

Tie

423154

64

Fuel Hose

821730

65

Spring Hose Clamp

280261

66

Clear Vent Hose

821723

67

700T Fan Shroud

722976

68

721DT Coupler Shield

722982

69

Truss Whiz Bolt

253176

70

T2 Expansion Tank Adapter

130510

-

O-Ring

126550

71

Hex Bolt

243345

72

Lock Washer

257412

73

Hex Bolt

243038

74

Lock Washer

257392

75

Neutral Return Pivot Bearing

822304

76

Washer

257030

77

Hex Bolt

243340

78

Lock Nut

253890

79

Hex Bolt

243186

80

Vibration Isolator

424071

81

Whiz Bolt

253200

82

Truss Machine Screw

250164

83

Hose Assembly

424383

84

700T Water Cooled Bent Control Arm

729662

85

Phillips Truss Whiz Bolt

253179

86

Washer

774292

87

Washer

257032

88

Double Seal Ball Bearing

120025

89

Hex Bolt

243205
