Genuine OEM Grasshopper Lawn Mower Parts

Genuine OEM Grasshopper® Mower Parts Diagrams

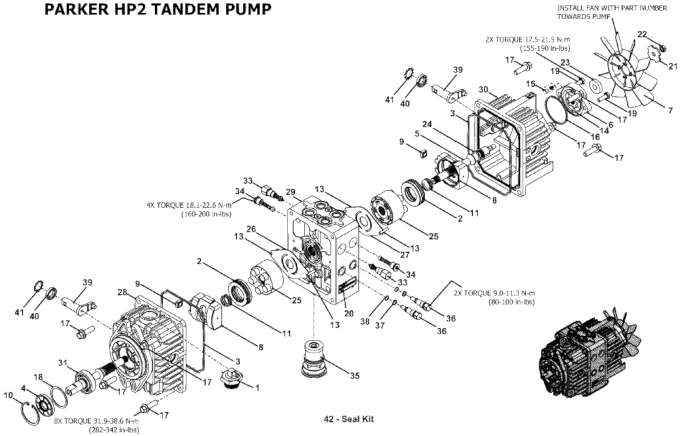

721DT • HP2 Tandem Pump Assembly

2011

HP2 Tandem Pump Assembly

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.

Item #

Description

Part Number

1

T2 Expansion Tank Adapter

130510

-

O-Ring

126550

2

Thrust Bearing

130412

-

T6 Thrust Bearing

130512

3

Housing Seal Ring

130580

4

Input Seal

125370

5

Pump Shaft

130578

-

Thru Shaft Seal

125162

6

Charge Cover

130522

-

T6 Charge Cover

130526

7

H2&T Hydro Fan

130431

-

T6 Fan 8.3″

130434

8

Swashblock

130414

-

T6 Swashblock

130514

9

Control Block

130416

-

T6 Control Block

130516

10

Retaining Ring

130404

11

Center Spring

130472

-

T6 Center Spring

130572

12

NOT AVAILABLE

000000

13

Dowel Pin

130458

14

Gerotor Set

130524

15

Charge Relief Kit

130427

16

Charge Cover Seal Ring

130420

17

T2 Hex Flanged Bolt

271130

18

Washer

130406

19

Hex Head

271023

20

NOT AVAILABLE

000000

21

Fan Retainer Washer

130432

22

Nylon Insert Nut

253461

23

Thru Shaft Seal

125162

24

Thrust Washer

130508

25

Piston& Barrel Assembly

130450

-

T6 Piston & Barrel Assembly

130550

26

Port 1 Pump Plate

130552

-

T6 Port 1 Pump Plate

130556

27

Port 2 Pump Plate

130554

-

T6 Port 2 Pump Plate

130558

28

Pump 2 Housing Assembly

130560

-

Cradle Bearing

130511

-

T6 Pump 2 Housing Assembly

130561

29

Center Block Assembly

130538

-

T6 Center Block Assembly

130540

30

Pump 2 Housing Assembly

130562

-

Cradle Bearing

130511

-

T6 Pump 2 Housing Assembly

130563

31

Pump 1 Shaft Assembly

130576

32

NOT AVAILABLE

000000

33

Shock Valve Asselmbly

130445

-

O-Ring

130447

34

Check Valve Assembly

130444

-

Hex Bolt

130447

35

Tandem Transmission Filter

130505

36

Bypass Valve

130448

37

Backup Ring

130517

38

O-Ring

130518

39

Trunnion Arm

130418

40

H1A-12 Trunnion Seal

125358

41

Retaining Ring

130402

42

Seal Kit

130500
