Genuine OEM Grasshopper Lawn Mower Parts

Genuine OEM Grasshopper® Mower Parts Diagrams

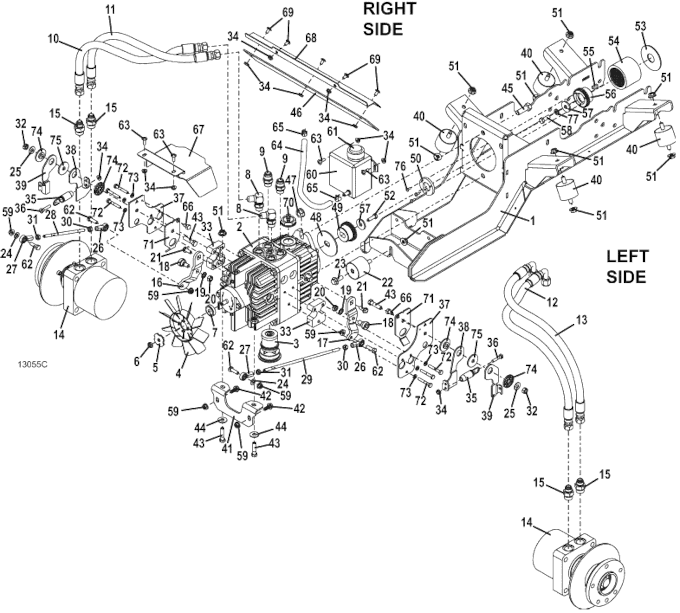

721DT • Drive Assembly

2018

Drive Assembly

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.

Item #

Description

Part Number

1

721DT Drive Train Mount

644878

2

Tandem Hydro Pump

391468

3

Tandem Transmission Filter

130505

4

H2&T Hydro Fan

130431

5

Fan Retainer Washer

130432

6

Nylon Insert Nut

253461

7

H2 Fan Hub

130430

8

O-Ring Adapter

360061

9

Fitting Adapter

360064

10

Hose Assembly

424383

11

Hose Assembly

424384

12

Hose Assembly

424385

13

Hose Assembly

424386

14

H2 Wheel Motor w/Hub

603611

15

O-Ring Adapter

360063

16

Rt Neutral Return Arm

726162

17

Lt Neutral Return Arm

726163

18

Opposed Roller Assembly

603735

19

External Star Washer

257410

20

Nut

254450

21

Hex Bolt Fl w/Ser

271021

22

Vibration Isolator

424071

23

Flange Whiz Bolt

253203

24

Washer

257032

25

Washer

257030

26

Rt Rod End - Female

265650

27

Lt Rod End - Female

265651

28

Lt/Rt Steering Linkage

780169

29

Lt/Rt Steering Rod

780172

30

Nut

254441

31

Nut

254444

32

Lock Nut

253890

33

Return Spacer

422049

34

Whiz Nut

253025

35

Extension Spring

283823

36

Hex Bolt

243035

37

Neutral Return Mount

766037

38

Neutral Return Arm

766043

39

Neutral Return Arm

766044

40

Vibration Isolator

424073

41

Front Pump Mount

725563

42

Hex Flange Whiz Bolt

253192

43

Hex Bolt

243340

44

Washer

257040

45

Hex Bolt

243565

46

700T Water Cooled Grille Flap

424162

47

Whiz nut

253066

48

DD Washer

774175

49

Coupler Hub

388577

50

Coupling Stabilizer w/Holes

424151

51

Whiz Nut

253043

52

Hex Bolt

243206

53

3" (outer dimension) Washer

774176

54

Nylon Coupler Sleeve

388560

55

Square Key

281580

56

Flex Coupler w/Holes

831034

57

Washer

774020

58

Hex Bolt

243331

59

Whiz Nut

253035

60

Oil Expansion Tank

421981

61

Vented Cap w/Gasket

421991

62

Hex Bolt

243205

63

Phillips Truss Whiz Bolt

253179

64

Hydro Expansion Hose

821709

65

Spring Hose Clamp

280261

66

Hex Bolt

243186

67

700T Fan Shroud

722976

68

721DT Coupler Shield

722982

69

Truss Whiz Bolt

253176

70

T2 Expansion Tank Adapter

130510

71

Adjustment Plate

766038

72

Hex Bolt

243038

73

Lock Washer

257392

74

Neutral Return Pivot Bearing

822304

75

Washer

774292

76

Truss Machine Screw

250164

77

Lock Washer

257412
