Genuine OEM Grasshopper Lawn Mower Parts

Genuine OEM Grasshopper® Mower Parts Diagrams

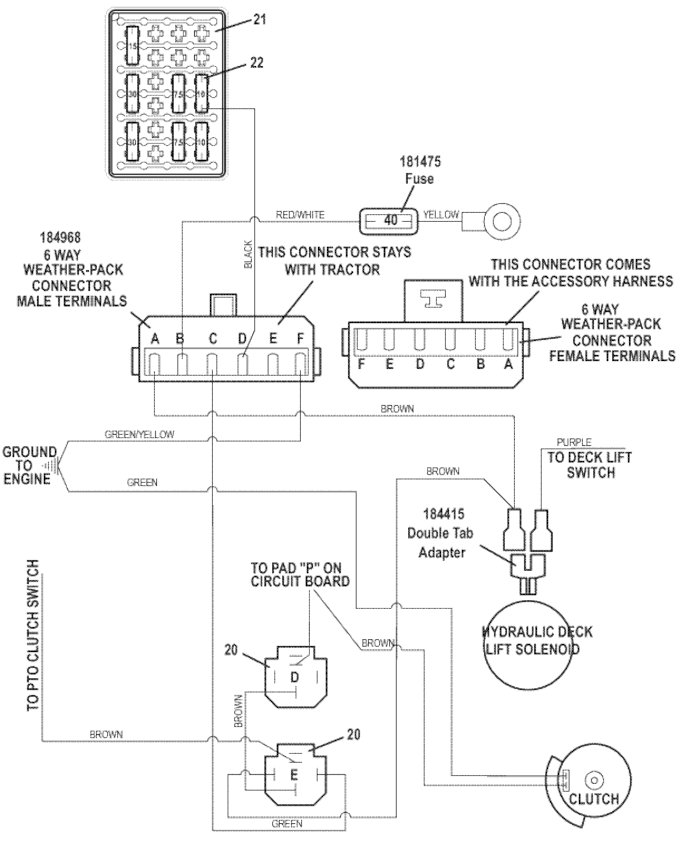

721DT • Universal Wiring Harness Wiring Diagram Cont.

2018

Universal Harness

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.

Item #

Description

Part Number

20

12VDC Relay w/Diode

184266

21

Fuse Block

181725

-

Fuse ID Front Mount Decal

162341

-

Fuse Block Cover

181726

-

Cable Seal

184985

-

Cavity Plug

184986

-

Hex Bolt

270821

22

30 amp Fuse

181456

-

7.5 amp Fuse

181451

-

10 amp Fuse

181452

-

15 amp Fuse

181453

Return to 721DT Index Return to Top
