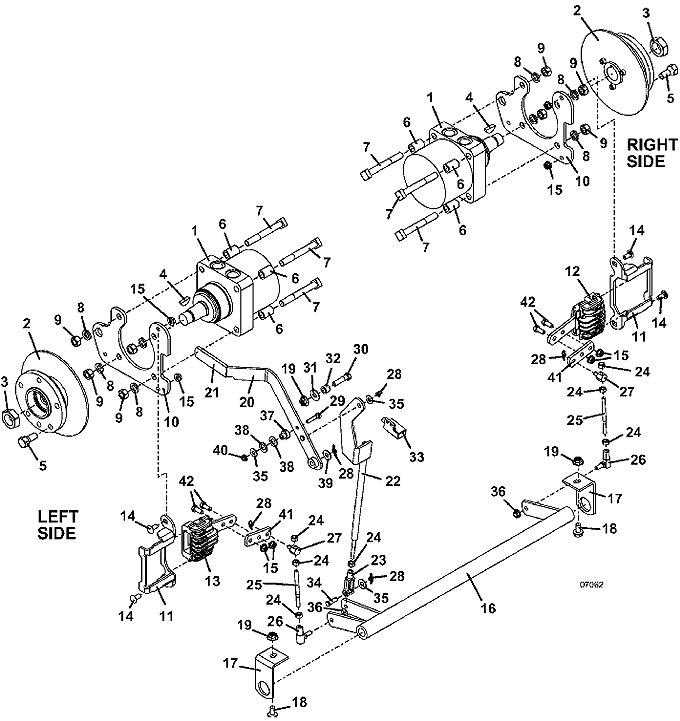

722DT6 • Brake Assembly
2009
Click On a Part Number Below for Details
NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.
Item # |
Description |
Part Number |
1 |
722DT6 Wheel Motor with Hub |
603615 |
2 |
Hub & Rotor Assembly |
604442 |
- |
Socket Head Screw |
259592 |
- |
8.0 Brake Rotor |
775192 |
3 |
Nut |
254522 |
4 |
Woodruff Key |
281860 |
5 |
Lug Bolt |
248565 |
6 |
Wheel Motor Spacer |
902299 |
7 |
Square Head Bolt |
243622 |
8 |
Lock Washer |
257432 |
9 |
Nut |
254470 |
10 |
Brake & Traction Kit MountSerial Number 5915226 & Above |
776122 |
- |
Brake & Traction Kit MountSerial Number 5915225 & Below |
776274 |
11 |
Brake Caliper Mount |
644588 |
12 |
700, 900, M1 Clockwise Brake AssemblySerial Number 5915226 & Above |
481140 |
- |
Clockwise Caliper Brake AssemblySerial Number 5915225 & Below |
481102 |
- |
Brake Pad KitSerial Number 5915226 & Above |
481160 |
- |
Brake Pad KitSerial Number 5915225 & Below |
603150 |
- |
Brake Caliper MountSerial Number 5915225 & Below |
644588 |
13 |
700, 900, M1 Counter-Clockwise Brake AssemblySerial Number 5915226 & Above |
481141 |
- |
Counter Clockwise Caliper Brake AssemblySerial Number 5915225 & Below |
481103 |
- |
Brake Pad KitSerial Number 5915226 & Above |
481160 |
- |
Brake Pad KitSerial Number 5915225 & Below |
603150 |
- |
Brake Caliper MountSerial Number 5915225 & Below |
644588 |
14 |
Hex BoltSerial Number 5915226 & Above |
243381 |
- |
Carriage BoltSerial Number 5915225 & Below |
247130 |
- |
Whiz NutSerial Number 5915225 & Below |
253035 |
15 |
Whiz Nut |
253035 |
16 |
Linkage Rod |
644539 |
17 |
Brake Pivot Mount |
732617 |
18 |
Whiz Bolt |
253200 |
19 |
Whiz Nut |
253043 |
20 |
700/900 Brake Lever |
644035 |
21 |
Handle Grip |
422150 |
22 |
Brake Linkage Arm |
644036 |
23 |
Clevis Yoke |
265537 |
24 |
Nut |
254441 |
25 |
Brake Linkage Rod |
780158 |
26 |
Righthand Thread Ball Joint |
265615 |
27 |
.312 Brake Linkage Pin |
880926 |
28 |
Cotter Ring |
260606 |
29 |
Hex Bolt |
243030 |
30 |
Hex Bolt |
243340 |
31 |
Washer |
257040 |
32 |
Spacer |
902280 |
33 |
Brake Interlock Switch |
183894 |
34 |
Clevis Pin |
261284 |
35 |
Washer |
257020 |
36 |
Whiz Nut |
253038 |
37 |
Brake Lever Spacer |
881130 |
38 |
Washer |
257063 |
39 |
Washer |
257030 |
40 |
Whiz Nut |
253025 |
41 |
700 Series Brake Strap |
782851 |
42 |
Hex Flange Whiz Bolt |
243195 |
