Genuine OEM Grasshopper® Mower Parts Diagrams

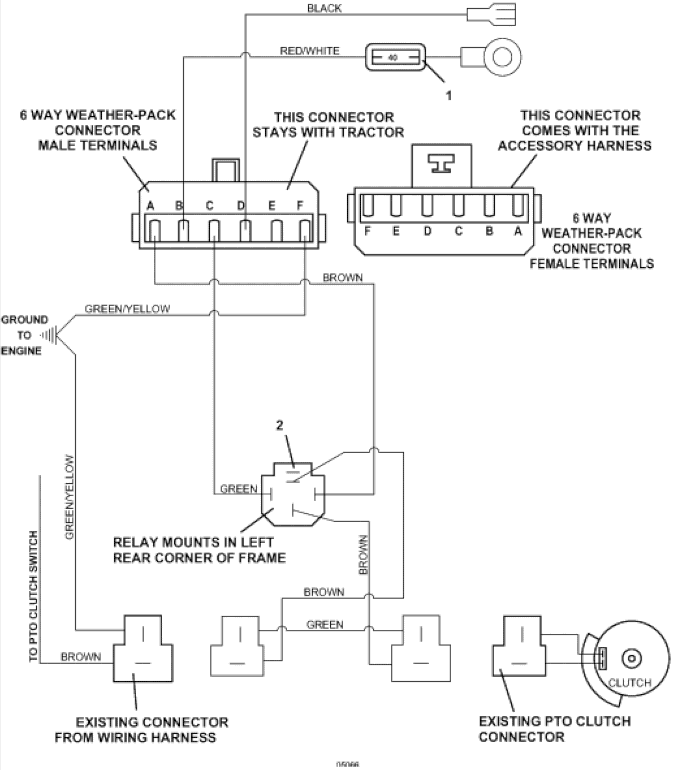

723T • Universal Harness - Limited
2008
Click On a Part Number Below for Details
NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.
Item # |
Description |
Part Number |
1 |
ATC Auto Fuse 40A |
181475 |
2 |
Relay 12V DC with Mount |
184271 |
- |
Push-On Type 1.6 MM |
184570 |
- |
Fast-on Terminal |
184581 |
- |
5-Way Female Connector |
184926 |
3 |
Universal Wiring Harness Extension |
605957 |
