Genuine OEM Grasshopper Lawn Mower Parts

Genuine OEM Grasshopper® Mower Parts Diagrams

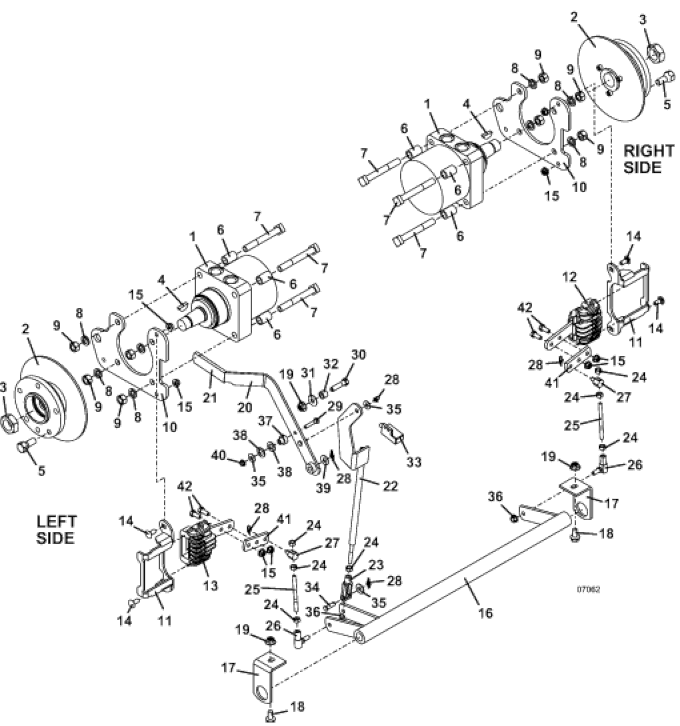

723T • Wheel Motor & Brake Assembly

2008

Wheel Motor and Brake Assembly

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.

Item #

Description

Part Number

1

H2 Wheel Motor with Hub

603611

2

Hub & Rotor Assembly

604442

-

Socket Head Screw

259592

-

8.0 Brake Rotor

775192

3

Nut

254522

4

Woodruff Key

281860

5

Lug Bolt

248565

6

Wheel Motor Spacer

902299

7

Square Head Bolt

243622

8

Lock Washer

257432

9

Nut

254470

10

Brake & Traction Kit Mount

776274

11

Brake Caliper Mount

644588

12

Clockwise Caliper Brake Assembly

481102

-

Brake Pad Kit

603150

13

Counter-Clockwise Caliper Brake Assembly

481103

-

Brake Pad Kit

603150

14

Carriage Bolt

247130

15

Whiz Nut

253035

16

Brake Linkage Rod

644539

17

Brake Pivot Mount

732617

18

Whiz Bolt

253200

19

Hex Bolt

253043

20

700/900 Brake Lever

644035

21

Handle Grip

422150

22

Brake Linkage Arm

645010

23

Clevis Yoke

265537

24

Nut

254441

25

Brake Linkage Rod

780158

26

Righthand Thread Ball Joint

265615

27

.312 Brake Linkage Pin

880926

28

Cotter Ring

260606

29

Hex Bolt

243030

30

Hex Bolt

243340

31

Washer

257040

32

Spacer

902280

33

Brake Interlock Switch

183894

34

Clevis Pin

261284

35

Washer

257020

36

Whiz Nut

253038

37

Brake Lever Spacer

881130

38

Washer

257063

39

Washer

257030

40

Whiz Nut

253025

41

700 Series Brake Strap

782851

42

Hex Bolt

243195
