Genuine OEM Grasshopper® Mower Parts Diagrams

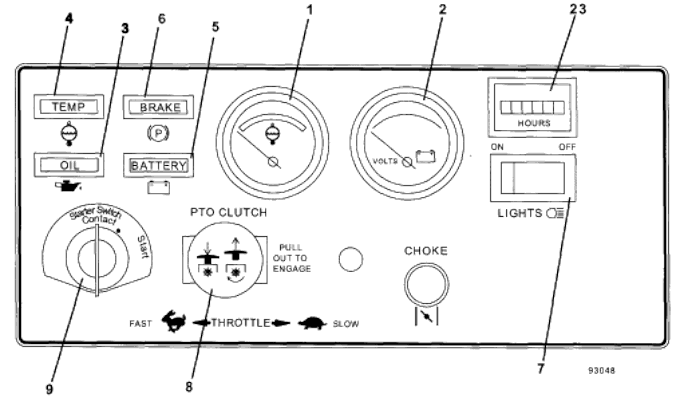

725G2 • Console
1998
Click On a Part Number Below for Details
NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.
Item # |
Description |
Part Number |
1 |
Zoned Electronic Temp Guage |
141160 |
2 |
Voltmeter Guage |
141200 |
3 |
Oil Indicator Light |
182327 |
4 |
Temp Indicator Light |
182328 |
5 |
Battery Indicator Light |
182325 |
6 |
Brake Indicator Light |
182326 |
7 |
Rocker Switch |
184179 |
8 |
Push/Pull Switch |
183925 |
- |
9-Way Connector |
184942 |
9 |
Kubota Sealed Key Switch Includes 2 Keys |
183827 |
- |
Double Notch Kubota Ignition Key |
101106 |
23 |
Snap-In Hour Meter |
141551 |
24 |
721/725 Console Decal |
161132 |
