725G2 • Drive Assembly

1998

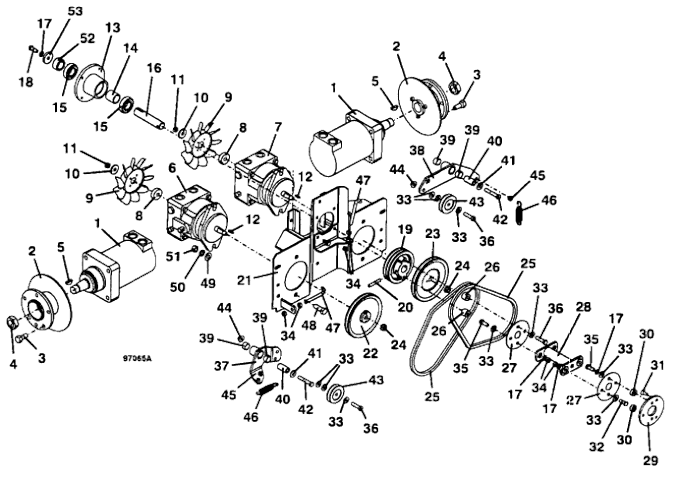

Drive Assembly Diagram

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.

Item #

Description

Part Number

1

Wheel Motor with Hub

603597

2

Hub & Rotor Assembly

604439

3

Lug Bolt

248565

4

Nut

254522

5

Woodruff Key

281860

6

Left Hydro Pump

391452

7

Right Hydro Pump

391453

8

Fan Mount Hub

885123

9

7" Nylon CW Fan

320857

10

Washer

774020

11

Nut

254452

12

Rectangle Key

281562

13

Vacuum Fan Spindle Housing

320522

14

Drive Bearing Spacer

903650

15

Ball Bearing

110081

16

700G2 Drive Shaft

882052

17

Lock Washer

257412

18

Hex Bolt

243331

19

Sheave

415036

20

Roll Pin

261061

21

900 Drive Mount

644630

22

Sheave

415024

23

Sheave

415023

24

Flanged Nut with Counter Bore

830351

25

Belt

381540

26

G2 Drive Spacer

902327

27

Flex Coupling Disc

821530

28

Coupling Connector

644118

29

Coupling Adapter

783458

30

Coupling Spacer

902318

31

Flat Head Cap Screw

270346

32

Hex Bolt

830040

33

Washer

257030

34

Nut

254450

35

Hex Bolt

243330

36

Hex Bolt

243340

37

G2 Lower Idler Arm Assembly

604448

38

G2 Upper Idler Arm Assembly

604447

39

Oilite Bearing

121758

40

Pivot Shaft Bearing

881105

41

Washer

257040

42

Hex Bolt

243350

43

Idler

604449

44

Whiz Nut

253043

45

Nylon Bearing

422520

46

Extension Spring with Swivel

283819

47

Idler Adjustment "J" Bolt

730391

48

Hex Bolt

243570

49

Washer

257062

50

Lock Washer

257432

51

Nut

254470

52

Spacer

282630

53

Washer

883801
