725G2 • Drive Linkage Assembly

1998

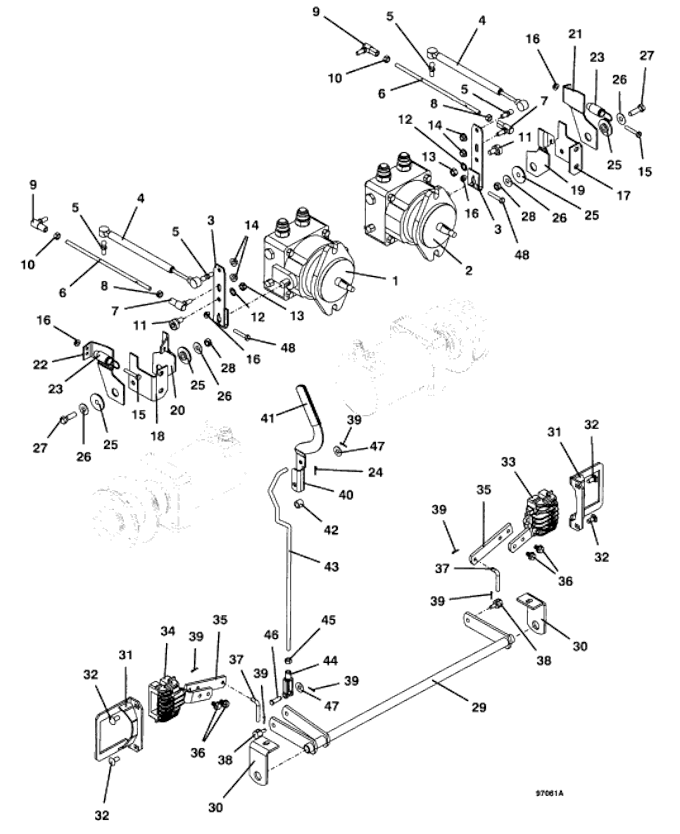

Drive Linkage Assembly Diagram

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.

Item #

Description

Part Number

1

Left Hydro Pump

391452

2

Right Hydro Pump

391453

3

Right Pump Control Arm

725338

4

Damper

285031

5

Ball Stud

265680

6

Pump Steering Rod Linkage

780164

7

Left Handed Thread Ball Joint

265616

8

Nut

254444

9

Right Handed Thread Ball Joint

265615

10

Nut

254441

11

Eccentric Roller Assembly

603726

12

External Star Washer

257410

13

Nut

254450

14

Whiz Nut

253038

15

Hex Bolt

243035

16

Whiz Nut

253025

17

21L Right Nuetral Return Mount

729225

18

21L Left Nuetral Return Mount

729226

19

Right Nuetral Return Arm

729138

20

Left Nuetral Return Arm

729139

21

Right Front Nuetral Return Arm

729136

22

Left Front Nuetral Return Arm

729137

23

Extension Spring

283823

24

Cotter Pin

260648

25

Nuetral Return Pivot Bearing

822304

26

Washer

257040

27

Hex Bolt

243335

28

Lock Nut

253890

29

900DG2 Linkage Rod

644521

30

Pivot Mount Brake Bracket

732610

31

M1/G2 Caliper Mount

644121

32

Carriage Bolt

247130

33

Clockwise Brake Assembly

481108

-

Brake Pad Kit

603150

34

Brake Assembly

481109

-

Brake Pad Kit

603150

35

900DG2 Brake Linkage

782873

36

Whiz Bolt

253189

37

928 Brake Linkage Rod

730155

38

Brake Linkage Pin

880924

39

Cotter Pin

260624

40

Split Drive Brake Lever

754045

41

Handle Grip

422150

42

Brake Lever Spacer

423705

43

700 Brake Linkage Rod

730361

44

Clevis Yoke

265537

45

Nut

254441

46

Clevis Pin

261284

47

Washer

257030

48

Hex Whiz Bolt

253182

Return to 725G2 Index TOP
