Genuine OEM Grasshopper Lawn Mower Parts

Genuine OEM Grasshopper® Mower Parts Diagrams

725G2 • Optional Hydraulic Lift Assembly

1998

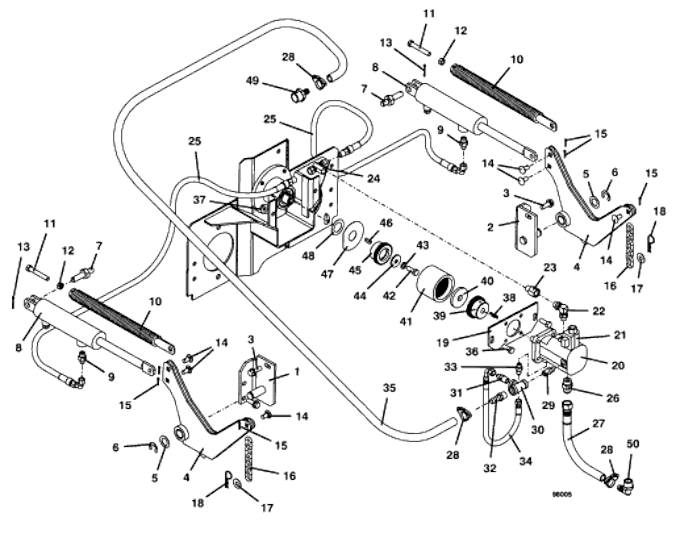

Optional Hydraulic Lift Assembly Diagram

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.

Item #

Description

Part Number

1

900 Right Lift Pivot

644517

2

900 Left Lift Pivot

644518

3

Flanged Whiz Bolt

253203

4

Hydraulic Lift Rocker

603716

5

18 GA Bushing Washer

257092

6

External Retainer

263529

7

Cylinder Mount Pin with Groove

887119

8

Hydraulic Cylinder

290021

9

Adapter O-Ring

360052

10

Spring & Plug Nut Assembly

604762

11

Hex Bolt

243361

12

Nut

254450

13

Cotter Pin

260652

14

Clevis Pin

261339

15

Cotter Pin

260648

16

Lift Chain

820320

17

Washer

257040

18

Hair Pin

260523

19

Pump Mount Plate

725326

20

700/900 G2 Hydraulic Lift Pump Assembly

604430

21

Hydraulic Solenoid Valve

144950

22

90 Degree Adapter O-Ring

360055

23

Adapter O-Ring

360045

24

Swiveltee Adapter

360005

25

Hose Assembly

424310

26

Steel Boss O-Ring Fitting

363832

-

O-Ring

126527

-

O-Ring

126535

27

Hose & Strainer Assembly

604432

28

Plastic Snap Hose Clamp

280278

29

Adapter O-Ring

360040

30

Reducer Tee

366115

31

Adapter Fitting

360012

32

Brass Hose Insert

360260

33

Adapter O-Ring

360050

34

Hose Assembly

424302

35

Hydraulic Hose

821806

36

Hex Bolt

243330

37

Whiz Nut

253043

38

Square Key

281540

39

Coupler Hub

388576

40

Coupling Stabilizer

424150

41

Nylon Coupler Sleeve

388560

42

Hex Bolt

243331

43

Lock Washer

257412

44

Washer

774020

45

Lower Flex Coupler

831039

46

Square Key

281580

47

Washer

770045

48

Washer

257106

49

Nylon Fitting

363859

50

Nylon Fitting

363851
