Genuine OEM Grasshopper Lawn Mower Parts

Genuine OEM Grasshopper® Mower Parts Diagrams

725G2 G2 Pump Breakdown

1998

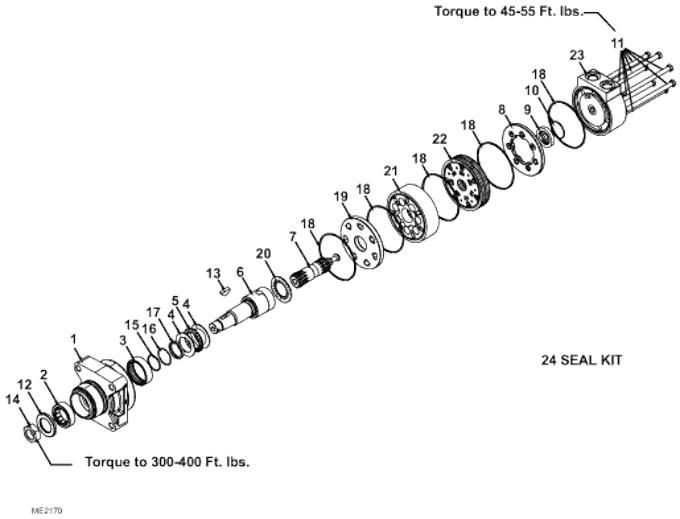

G2 Pump Breakdown Diagram

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.

Item #

Description

Part Number

1

Sub Assembly Shaft

130178

2

Wire Retaining Ring

130170

3

Input Seal Retaining Ring

130088

4

Input Seal Spacer

130086

5

Input Bearing

130080

6

Seal

125363

7

Control Shaft Retaining Ring

130028

8

Seal

125360

9

Control Shaft

130035

10

Guide Block

130065

11

21L Housing Kit

130056

-

Cradle Bearing

130010

12

Thrust Bearing

130012

13

Block Thrust Washer

130220

14

Block Spring

130015

15

End Cap Kit

130040

-

End Cap Kit without Plate

130047

16

Dowel Pin

130046

17

Square Cut Seal Ring

130180

18

Valve Plate

130210

19

Not Available

000000

20

Seal

125165

21

Piston Block Assembly

130150

22

Charge Cover Square Seal Ring

130020

23

Charge Pump Cover

130022

24

Gerotor Set

130060

25

Check Valve Kit

130156

-

Check Plug O-Ring

130031

26

Ball & Spring Assembly

130027

27

Not Available

000000

-

Bypass Balve Backup Ring

130017

-

Bypass Valve O-Ring

130018

28

Hex Bolt

243205

29

Not Available

000000

30

Flanged Hex Nut

130075

31

Seal Kit

130177
