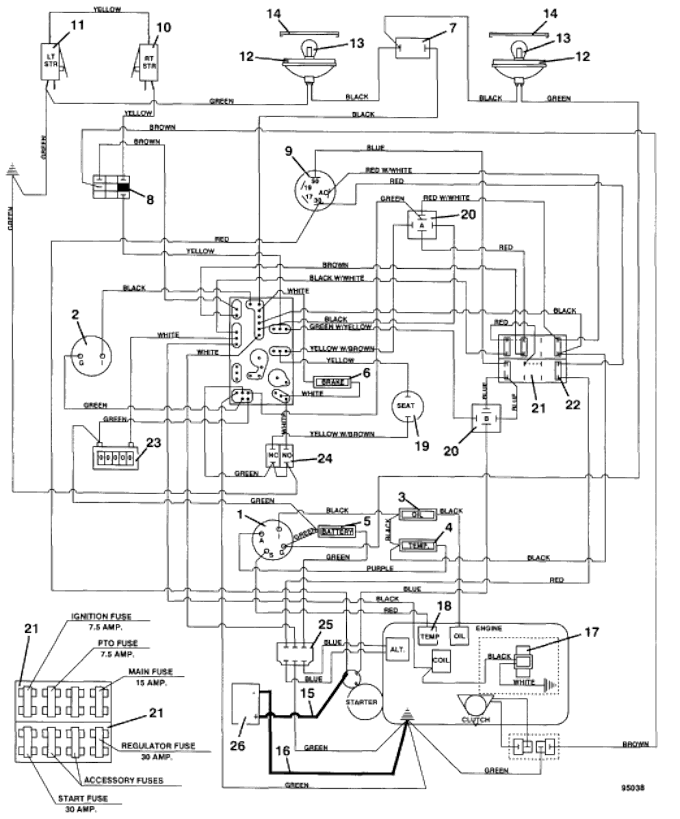

725G2 • Wiring Diagram
1998
Click On a Part Number Below for Details
NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.
Item # |
Description |
Part Number |
1 |
Zoned Electric Temp Guage |
141160 |
2 |
Voltmeter Guage |
141200 |
3 |
Oil Indicator Light |
182327 |
4 |
Temp Indicator Light |
182328 |
5 |
Battery Indicator Light |
182325 |
6 |
Brake Indicator Light |
182326 |
7 |
Rocker Switch |
184179 |
8 |
Push-Pull Switch |
183925 |
- |
9-Way Connector |
184942 |
9 |
Kubota Sealed Key Switch (Includes 2 Keys) |
183827 |
- |
Kubota Double Notch Ignition Key |
101106 |
10 |
Lever Switch |
183860 |
- |
Right Steering Switch Mount |
720160 |
11 |
Lever Switch |
183860 |
12 |
Flood Worklamp (Includes Bulb) |
182253 |
13 |
Worklamp Light Bulb |
182005 |
14 |
Worklamp Snap Mount Bezel |
182251 |
15 |
11" Red Battery Cable |
180310 |
- |
Starter Terminal Boot |
425219 |
16 |
16" Black Battery Cable |
180276 |
17 |
Electric Fuel Pump |
101510 |
18 |
Temperature Sender |
141222 |
19 |
Seat Switch |
183870 |
20 |
12V DC Relay |
184272 |
- |
1.6MM Push-On Type |
184570 |
- |
.250 Faston Terminal |
184581 |
- |
5-Way Female Connector |
184926 |
21 |
Fuse Block |
181722 |
- |
1-Wire Fuse Clip |
184458 |
- |
2-Wire Fuse Clip |
184460 |
- |
Double Clip Fuse Clip |
184472 |
- |
Whiz Nut |
253020 |
- |
Hex Whiz Bolt |
253167 |
22 |
30 Amp Auto ATC Fuse |
181470 |
- |
7.50 Amp Auto ATC Fuse |
181460 |
- |
15 Amp Auto ATC Fuse |
181465 |
23 |
Snap In Hour Meter |
141551 |
23 |
Brake Interlock Switch |
183894 |
23 |
12V Voltage Regulator |
185530 |
23 |
12V Sidepost Wet Battery |
180130 |
- |
12V Sidepost Dry Battery |
180131 |
- |
Contour Battery Box Assembly |
603105 |
- |
Battery Box Lid Assembly |
603570 |
- |
Bolt On Battery Clamp |
723017 |
27 |
712/725 Wiring Assembly |
604976 |
28 |
721/725 Console Decal |
161132 |
