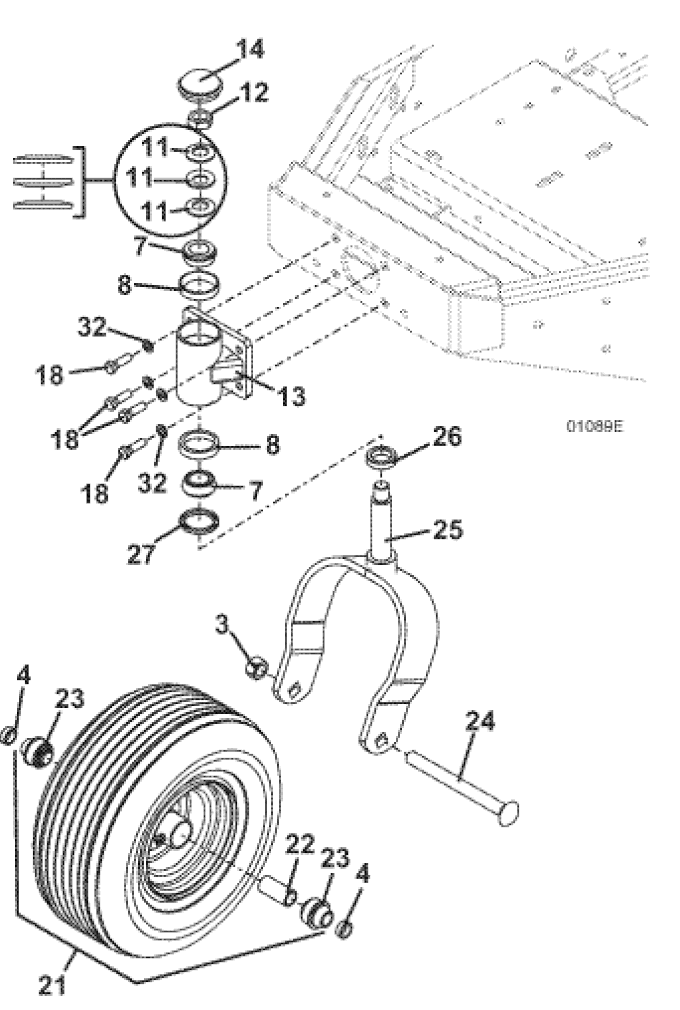

Genuine OEM Grasshopper® Mower Parts Diagrams
725KT • Tail Wheel Options 2
2014
Click On a Part Number Below for Details
NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.
Item # |
Description |
Part Number |
3 |
Lock Nut |
253970 |
4 |
Axle Spacer |
902422 |
7 |
Taper Bearing |
122522 |
8 |
Bearing Cup |
123522 |
11 |
Spring Washer |
257320 |
12 |
Jam Nylon-Top Lock Nut |
254505 |
13 |
R Rear Fork Pivot Housing Assembly (includes items 18 & 32) |
604596 |
14 |
Dust Cap |
481434 |
18 |
GR 8 Hex Bolt |
243334 |
21 |
13 x 6.5 x 6 Rear Wheel Assembly with Bearing |
603975 |
- |
Ribbed Tire |
482355 |
- |
Wheel without Tire - tan |
483306 |
22 |
Center Rear Axle Spacer |
902429 |
23 |
DP Wheel Ball Bearing |
120048 |
24 |
Carriage Bolt |
247726 |
25 |
Tail Wheel Fork with Tapered Bearing |
645221 |
26 |
Spacer |
282615 |
27 |
Seal |
125855 |
32 |
Lock Washer |
257412 |
