Genuine OEM Grasshopper® Mower Parts Diagrams

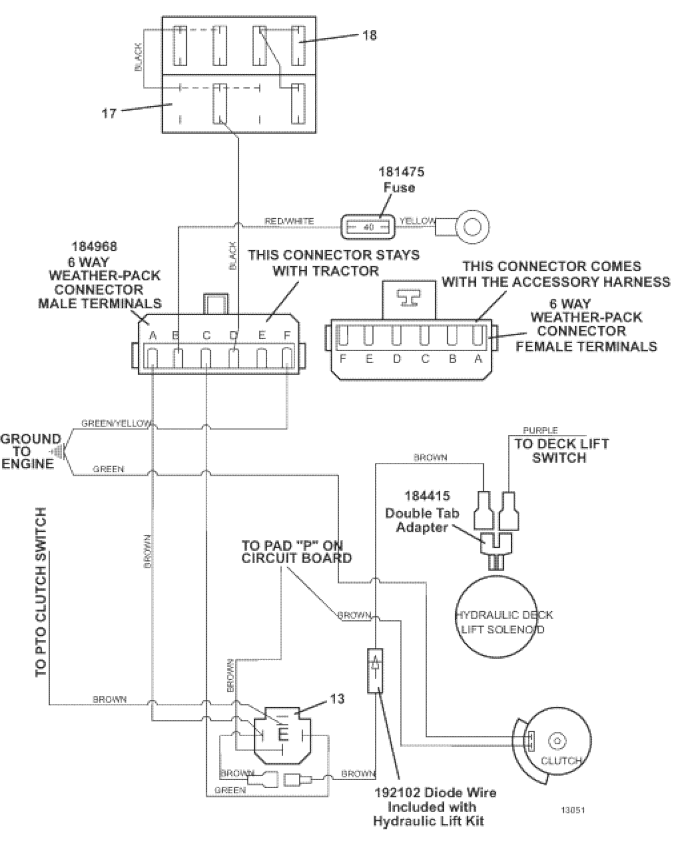

725KT • Universal Harness - Limited
2014
Click On a Part Number Below for Details
NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.
Item # |
Description |
Part Number |
13 |
Relay 12V DC W/ Diode |
184266 |
17 |
Fuse Block |
181722 |
- |
1 Wire Fuse clip |
184458 |
- |
2 Wire Fuse Clip |
184460 |
- |
Double Clip Fuse Clip |
184472 |
18 |
ATC Auto Fuse 30A |
181470 |
- |
ATC Auto Fuse 7.5A |
181460 |
- |
ATC Auto Fuse 10A |
181462 |
19 |
Universal Harness Extension |
605847 |
