Genuine OEM Grasshopper Lawn Mower Parts

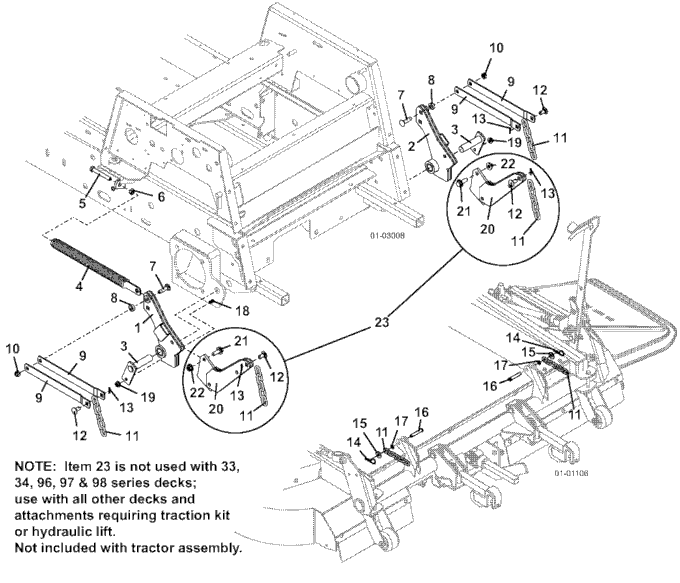

Genuine OEM Grasshopper® Mower Parts Diagrams

727KW • Traction Kit

2004

Traction Kit

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.

Item #

Description

Part Number

1

ROCKER W/O EXTENSION RT

603701

-

BEARING OILITE

121764

2

ROCKER W/O EXTENSION LT

603702

-

BEARING OILITE

121764

3

PIN - TRACTION KIT

644635

4

Spring & Nut Assembly

604762

5

HEX BOLT

243395

6

Nut

254450

7

Carriage Bolt

247254

8

Traction Kit Spacer

881095

9

Right Chain Mount Bracket

755018

10

Lock Nut

253890

11

Lift Chain

820320

12

Clevis Pin

261339

13

Cotter Pin

260648

14

Hair Pin

260523

15

Washer

257040

16

Clevis Pin

261362

17

Push-On Retainer

262950

18

Hex Flanged Whiz Bolt

253192

19

Whiz Nut

253035

20

Rocker Arm Extension

644706

21

Flanged Whiz Bolt

253203

22

Whiz Nut

253043

23

Rocker Extension Kit 700/900

604708

Return to 727KW Index Return to Top
