Genuine OEM Grasshopper® Mower Parts Diagrams

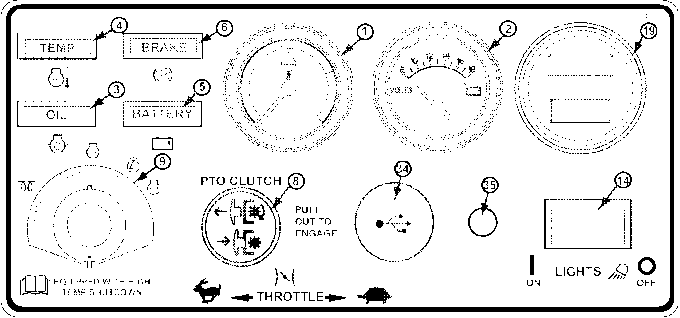

900D 1.3L • Console
2018
Click On a Part Number Below for Details
NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.
Item # |
Description |
Part Number |
1 |
Zoned Electric Temperature Gauge |
141165 |
2 |
Voltmeter Gauge |
141203 |
3 |
Oil Indicator Light |
182327 |
4 |
Temperature Indicator Light |
182328 |
5 |
Battery Indicator Light |
182325 |
6 |
Brake Indicator Light |
182326 |
8 |
Push / Pull Switch |
183925 |
9 |
Sealed Key Switch - Kubota |
183827 |
14 |
Rocker Switch |
184179 |
19 |
Console Mount Fuel Level Guage |
141551 |
20 |
Console Decal |
161146 |
34 |
USB Charging Receptacle |
141625 |
- |
USB Receptacle Cap |
141626 |
- |
USB Receptacle Plug |
141627 |
35 |
Light Switch Hole Plug |
422076 |
