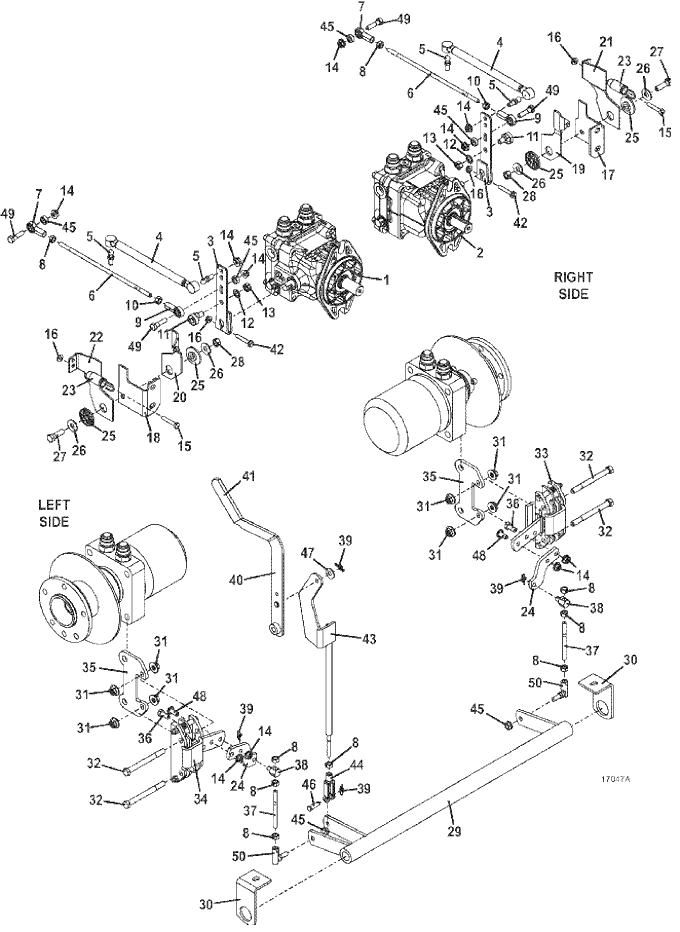

900D 1.3L • Drive Linkage Assembly

2018

Drive Linkage Assembly

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.

Item #	Description	Part Number
1	Left Hydro Pump	391444
2	Right Hydro Pump	39145
3	Right Pump Control Arm	725338
4	Damper	285031
5	Ball Stud	265680
6	Steering Linkage Pump Rod	780164
7	Right Female Rod End	265650
8	Nut	254441
9	Left Female Rod End	265651
10	Nut	254444
11	Eccentric Roller Assembly	603726
12	Washer	257410
13	Nut .375-16	254450
14	Whiz Nut	253035
15	Hex Bolt	243035
16	Whiz Nut	253025
17	21L Neutral Return Mount - right	729225
18	21 Neutral Return Mount - left	729226
19	Neutral Return Arm -right	729138
20	Neutral Return Arm - left	729139
21	Neutral Return Front Arm - right	729136
22	Neutral Return Front Arm - left	729137
23	Extension Spring	283823
24	900 1.3L Brake Strap	782849
25	Neutral Return Pivot Bearing	822304
26	Washer	257040
27	Hex Bolt	243335
28	Lock Nut	253890
29	Linkage Rod	644539
30	Brake Pivot Mount - 1.281	732616
31	Flange Nut	253044
32	Hex Bolt	243386
33	700/900 M1 Clockwise Brake Assembly	481140
-	Brake Pad Kit	481160
34	700/900 M1 Counterclockwise Brake Assembly	481141
-	Brake Pad Kit	481160
35	Brake Mount	776123
36	Hex Bolt	243195
37	Brake Linkage Rod	780158
38	Brake Linkage Pin	880926
39	Cotter Ring	260606
40	700/900 Brake Lever	644035
41	Grip Handle	422150
42	Hex Bolt	243038
43	Brake Linkage Arm	644036
44	Clevis Yoke	265537
45	Whiz Nut	253038
46	Clevis Pin	261284
47	Washer	257030
48	Whiz Truss Bolt	253190
49	Hex Bolt	243210
50	Ball Joint RightHand (RH) Thread	265615

Return to 900D 1.3L Index Return to Top
