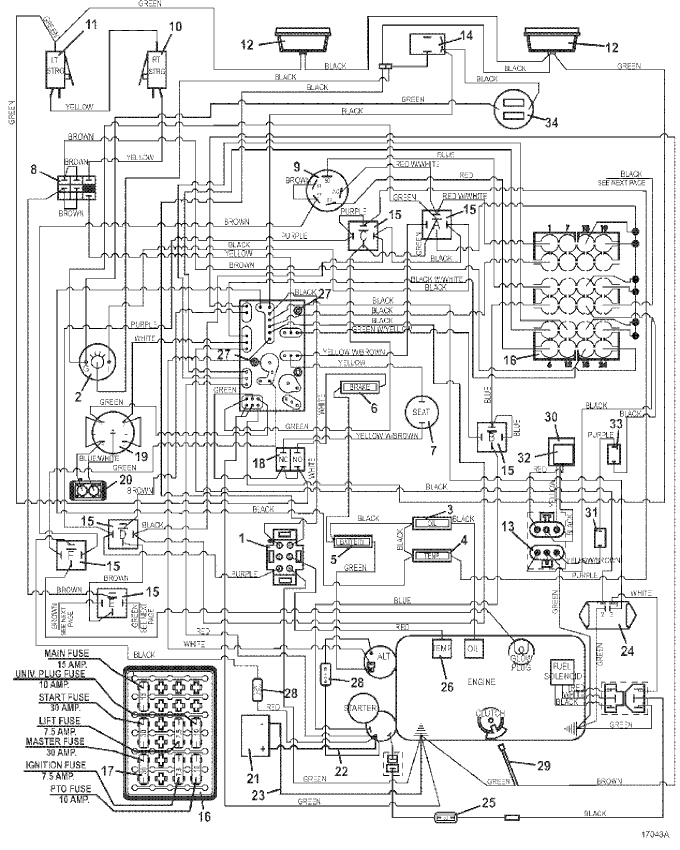

1

Zoned Electric Temperature Gauge

141165

2

Voltmeter Gauge

141203

-

Light Bulb

182007

3

Oil Indicator Light

182327

4

Temperature Indicator Light

182328

5

Battery Indicator Light

182325

6

Brake Indicator Light

182326

7

Twist-In Seat Switch

183871

8

Switch Push/Pull

183925

9

Switch Key Sealed - Kubota

183827

-

Kubota Double Notch Ignition Key

101106

10

Lever Switch

183860

-

Steering Switch Mount - right

720160

11

Lever Switch

183860

-

Steering Switch Mount - left

720161

12

LED Mini Light Bar Flood Worklamp Mount

182262

13

3-Way Male Connector

184973

14

Rocker Switch

184179

15

12V DC Relay w/ Diode

184266

16

Fuse Block

181725

-

Fuse ID Decal Front Mount

162341

-

Fuse Block Cover

181726

-

Cable Seal

184985

-

Cavity Plug

184986

-

Hex Bolt

270821

17

30A Fuse

181456

-

7.5A Fuse

181451

-

10A Fuse

181452

-

15A Fuse

181453

18

Brake Interlock Switch

183894

19

Console Mount Fuel Level Guage

141122

20

2 Terminal Connector

184907

-

Fuel Sender

141235

21

12 Volt Side Post Wet Battery

180130

-

Hex Bolt

243309

22

14" Battery Cable - Red

180313

-

Alternator Terminal Red Boot

425215

-

Starter Terminal Boot

425219

-

Battery Terminal Boot

425223

23

20" Battery Cable - Black

180282

24

Switch Interlock Module

184220

25

Inline Auto Fuse Holder

181735

-

30 amp Auto ATC Fuse

181470

26

Temperature Sender

141224

27

PC Board Support Spacer

423690

28

Inline Regulator Fuse Holder

604880

-

40 amp Auto ATC Fuse

181475

29

Pigtail Cable Assembly

388840

30

Tilt Switch Mount

722747

31

12V Hydraulic Lift Valve Solenoid

144951

32

Solid State Tilt Switch

183710

33

Sealed Dome Switch

183940

-

Momentary Toggle

183954

34

USB Charging Receptacle

141625

-

USB Receptacle Cap

141626

-

USB Receptacle Plug

141627

35

Light Switch Hole Plug

422076

36

900D 1.3L Wire Assembly

605933

37

Kubota M1 Console Decal

161119
